Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

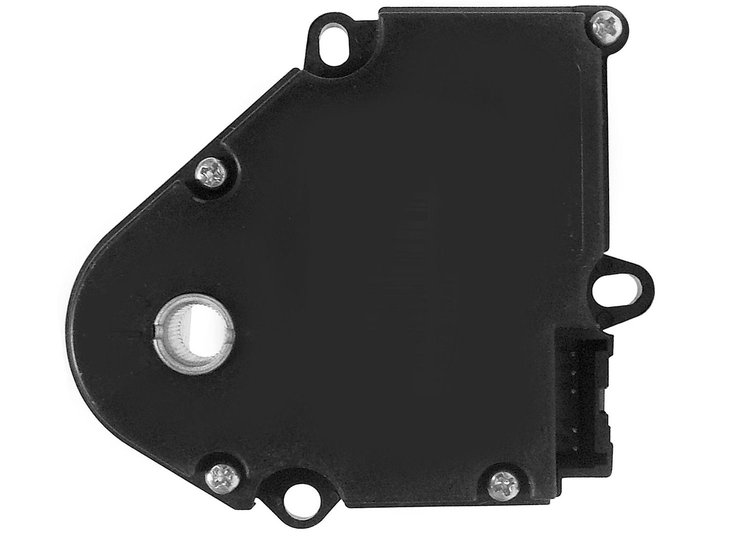

- Heating and Air Conditioning Panel Mode Door Actuator
Part TypeHVAC Mode Door Actuator
BrandACDELCO
Package Height3.4
Package Width5.3
Package Length2.75
Weight0.33 PG
Part CategoryReplacement Parts
Programming RequiredNo
Body ColorBlack
Good Maintenance Practices - Section 2 - HeaderYour A/C system requires proper air flow to operate effectively. Poor air flow across the condenser will impact system performance and can increase refrigerant system pressure. Make sure air flow into your system is not obstructed by bugs, leaves, dirt, or other contaminates in between tune ups.
Signs Of Wear & Troubleshooting - Section 1 - Bullet 1Seal failures
Signs Of Wear & Troubleshooting - Section 1 - HeaderSigns of wear for HVAC electrical components include but are not limited to:
Good Maintenance Practices - Section 1 - Bullet 1Musty smell when the air conditioning or heating system is activated
Terminal GenderMale
Good Maintenance Practices - Section 1 - Bullet 4Steam coming from the engine compartment
Connector ColorBlack
Good Maintenance Practices - Section 1 - Bullet 5Unusual smells inside or outside the vehicle
Good Maintenance Practices - Section 1 - Bullet 2Inadequate cooling or heating temperatures when using the air conditioning or heating system
Meets Or Exceeds Original Equipment ManuYes
Good Maintenance Practices - Section 1 - Bullet 3The vehicle's temperature gauge indicates a 'red' condition
Features & Benefits - Bullet 2GM-recommended replacement part for your GM vehicle's original factory component
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Features & Benefits - Bullet 3Offering the quality, reliability, and durability of GM OE
Features & Benefits - Bullet 4Manufactured to GM OE specification for fit, form, and function
Terminal Quantity5
Product DescriptionACDelco GM Original Equipment HVAC Mode Door Actuators are electric motors attached to the HVAC housing that move or actuate the mode doors or flaps, directing the airflow to the desired outlet vents. These original equipment HVAC mode door actuators are GM-recommended replacements for your vehicle's original components and have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mount Hole Quantity3
Features &#38; Benefits - Bullet 1Corrects mode door malfunction caused by a failed actuator
Volume (Cu In)68.79cu in
Signs Of Wear &#38; Troubleshooting - Section 3 - Bullet 1Set the climate control system to 'Heat' or 'Vent'
Signs Of Wear &#38; Troubleshooting - Section 2 - HeaderTo check your A/C system for leaks:
Signs Of Wear &#38; Troubleshooting - Section 3 - Bullet 2Set the blower fan on 'High' (roll down your windows if the interior becomes too warm)
Good Maintenance Practices - Section 1 - HeaderYour vehicle's air conditioning (A/C) system should be routinely checked by a professional technician. This should occur approximately every 12 months, though you should check your owner's manual for more specific recommendations. Any related maintenance should be handled only by professionals. If you notice any of the following conditions, have your vehicle checked right away:
Signs Of Wear &#38; Troubleshooting - Section 3 - Bullet 3Allow more distance between your vehicle and the one in front of you; this enables more air to enter the radiator easily
Terminal TypePin
Connector GenderFemale
Mounting Hardware IncludedNo
Signs Of Wear &#38; Troubleshooting - Section 3 - HeaderIf your engine begins overheating while driving in heavy traffic, the following steps can help alleviate the condition:
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 6Worn or damaged compressor Seals
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 7A/C system component corrosion
Body MaterialPlastic
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Damaged components
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3Worn or damaged compressor shaft seal
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Worn or damaged evaporator
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 5Worn or damaged condenser
Signs Of Wear &#38; Troubleshooting - Section 2 - Bullet 1Use a leak detection dye, such as ACDelco Fluorescent Tracer Dye. Be sure to use the dye that is specified for use with your systems oil and refrigerant type.
Signs Of Wear &#38; Troubleshooting - Section 2 - Bullet 2Look for dirt or containment build up around hose or line connections. This could be a sign that oil, which would attract and hold contaminants, is leaking out of the connection.
Part FitmentDirect Fit
Weight (Lb)0.48
Grade TypeOE
Vendor Part Number15-73620
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
