Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

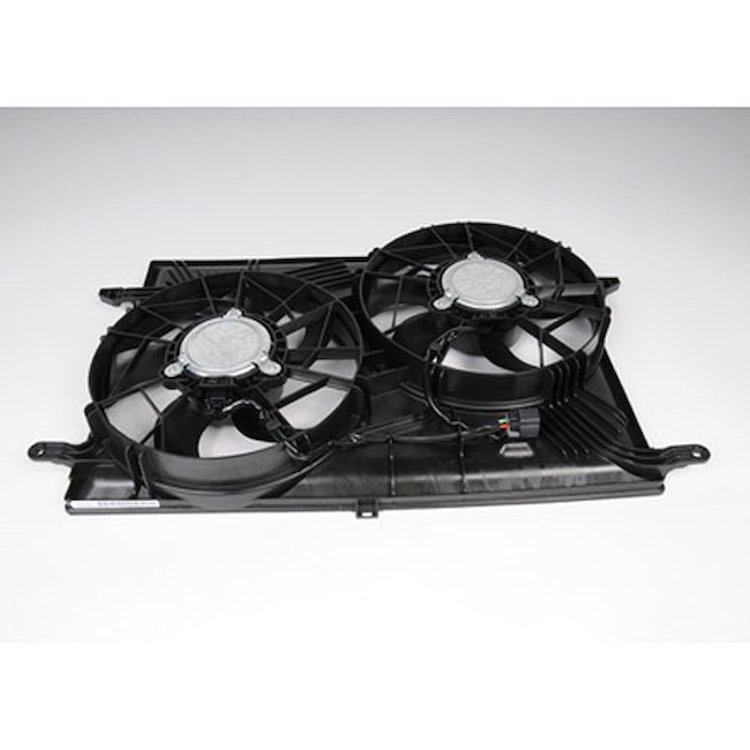

- Engine Cooling Fan Assembly with Shroud
Part TypeElectric Fan
BrandACDELCO
Package Height4.62
Package Width21.12
Package Length37.69
Weight21.02 PG
Housing FinishSmooth
Shroud IncludedYes
Fan 2 Blade Quantity5
Shroud MaterialPlastic
Fan 2 Diameter (In)13.58
Fan 1 Diameter14.048
Fan 1 Diameter (In)13.58858
Good Maintenance Practices - Section 1 - Bullet 1Before the purchase and installation of a engine cooling fan, make sure it is the correct fit for your vehicle.
Shaft Length1.03 in (26.2 mm)
Terminal GenderMale Female
Good Maintenance Practices - Section 1 - Bullet 2Regularly inspect engine cooling fans for signs of damage or wear, and replace them if signs of damage are found.
Good Maintenance Practices - Section 1 - Bullet 3Refer to your Vehicle Owner’s manual for additional vehicle maintenance practices.
Shaft Length (In)0.9527559
Product DescriptionGM Genuine Parts Engine Cooling Fans are designed, engineered, and tested to rigorous standards, and are backed by General Motors. These fans help keep your vehicle's engine running at its optimal operating temperature. It also may help regulate other fluid temperatures in your vehicle. GM Genuine Parts are the true OE parts installed during the production of or validated by General Motors for GM vehicles. Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE). ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Shaft Length (Mm)24.2
Blade MaterialPlastic
Fan Quantity2
Fan 2 Diameter14.048
Width (In)20.38
Blade Length (In)1/3/1900 10:09:27 PM
Electrical Or MechanicalElectrical
Shaft Diameter0.314 in (8 mm)
Length (In)37.56
Hub Bolt Hole Quantity6
Blade Quantity10
Fan 1 Diameter (Mm)345.15
Shaft Diameter (In)0.315748
Blade Width2.240551
Part CategoryReplacement Parts
Programming RequiredNo
Blade Length99.65
Blade Material Thickness0.02637795
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 1Overheating engine
Signs Of Wear &#38; Troubleshooting - Section 1 - HeaderSigns of wear or damage for engine cooling fans include but are not limited to:
Flat Side On ShaftNo
Blade TypeCurved
Voltage12
Shaft Diameter (Mm)8.02
Features &#38; Benefits - Bullet 2Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE)
Fan 1 Blade Quantity5
Features &#38; Benefits - Bullet 3GM Genuine Parts are designed, engineered and tested to rigorous standards, and are backed by General Motors.
Features &#38; Benefits - Bullet 4GM Engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle
Terminal Quantity4
Features &#38; Benefits - Bullet 5GM regularly updates production and service part designs to integrate new materials and technologies
Shroud ColorBlack
Features &#38; Benefits - Bullet 1Helps keep engine operating at its optimal operating temperature
Hub Bolt Hole Diameter4.56
Hub MaterialPlastic
Connector GenderMale Female
MaterialPlastic
Height (In)5.12
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Excessive noise
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3Fan not operating
Fan Clutch MountedYes
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Illuminated Malfunction Indicator Lamp
Original Equipment ReplacementYes
Part FitmentDirect Fit
Weight (Lb)12.84
Grade TypeOE
Vendor Part Number15-81657
Package Qty1
Package TypeEA
