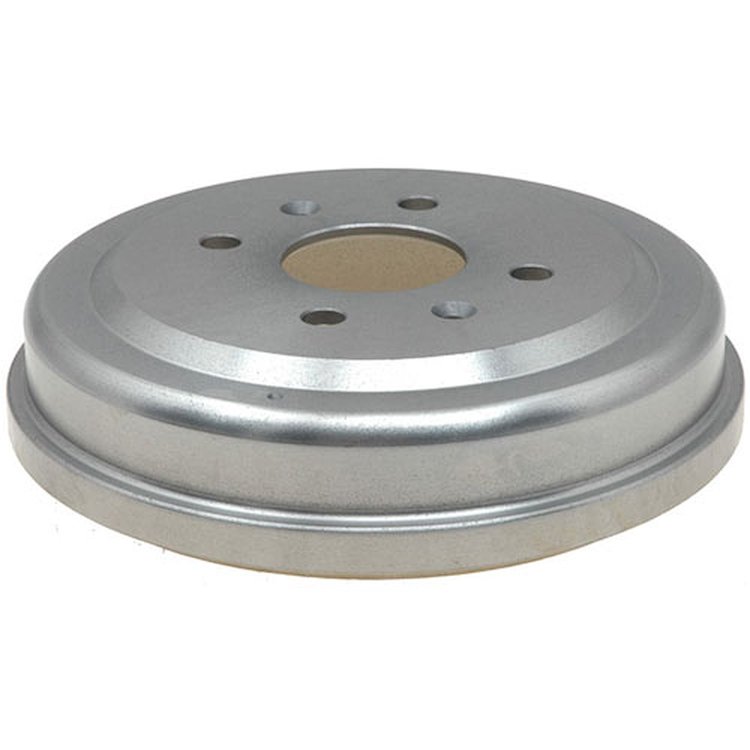

Brake DrumMaterial: Cast Iron Outside Diameter: 9.06 in. Discard Thickness: 7.91 in. Bolt Circle Diameter: 3.94 in. Position: Rear Sold Individually
ACDelco 18B579 Brake Drum is designed as an application-specific service replacement that supports proper fit, function, and system integration. Provides the friction surface used to convert vehicle motion into braking force. Verify vehicle fitment and system configuration before installation.
ACDelco 18B579 Features:
- Designed for application-specific dimensions and mounting so the brake system can operate as intended
- Designed for drum-brake service in compatible vehicle applications
- Supports proper brake-shoe contact when installed with serviceable drum-brake components
ACDelco 18B579 Notes:
- Verify vehicle application, position, and system configuration before installation.
Part TypeBrake Drum
BrandACDELCO
Package Height2.5
Package Width9.6
Package Length10.6
Weight8.68 PG
Part CategoryReplacement Parts
Abs Sensor Ring IncludedNo
Discard Thickness (Mm)201
Discard Thickness7.91 in (200.914 mm)
PositionRear
Nominal Drum Diameter7.9
MaterialCast Iron
Mount Hole Diameter0.492 in (12.497 mm)
Brake Surface FinishTurned
Nominal Drum Diameter (Mm)201
Outer Cooling FinsNo
Mount Hole Diameter (Mm)12.497
Bolt Circle Diameter3.94
New Or RemanufacturedNew
New Or RemanufacturedNew
Outside Diameter (Mm)230
Bolt Hole Quantity4
Part FitmentDirect Fit
Outside Diameter9.06 in (230.1 mm)
Grade TypeRegular
Bolt Circle Diameter (Mm)100
Vendor Part Number18B579
Package Qty1
Package TypeEA
