Vehicle Info NeededACDELCOPART NUMBER: 065-19419502

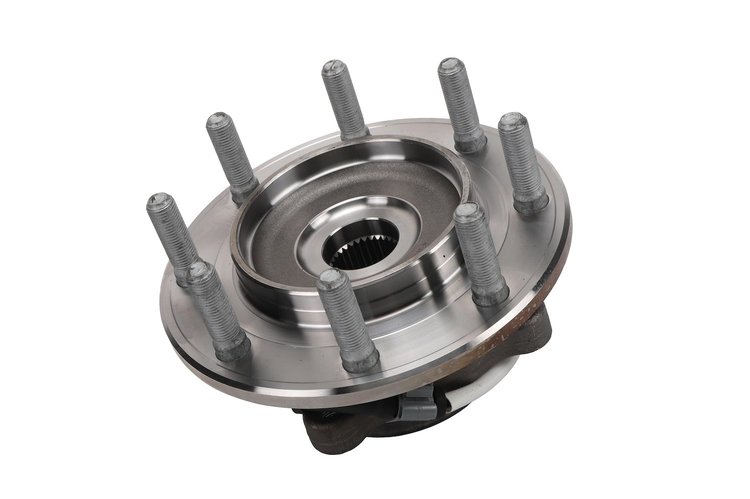

HUB ASMFRT WHL W (SLP)
$33099
Ships on 09/14/2026
Lowest Price GuaranteePart TypeAxle Hub Assembly
BrandACDELCO
Anti Lock Brake Sensor IncludedYes
Wheel Pilot Diameter116.64
Flange Bolt Hole Diameter15.43
Brake Pilot Diameter (In)4.639370079
Good Maintenance Practices - Section 1 - Bullet 1Tighten the wheel hub axle nut to recommended specs, overtightening may cause premature wear to the hub assembly
Terminal GenderMale
Good Maintenance Practices - Section 1 - Bullet 2Do not operate vehicle with a worn wheel hub assembly
Good Maintenance Practices - Section 1 - Bullet 3For bearings that are bolted onto knuckles, apply GM-recommended grease between bearing knuckle pilot and knuckle bore for easy of future removal. Take special care to avoid getting grease in the threads.
Product DescriptionACDelco GM Original Equipment Wheel Hubs provide the attaching point for the brake rotor and road wheel, and are GM-recommended replacements for your vehicle's original components. These wheel hubs are supported and allowed to rotate by the wheel bearing. These original equipment wheel hubs have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Connector Quantity1
Brake Pilot Diameter117.84
Spline Quantity33
Width (In)5.8
Flange Bolts IncludedYes
Bolt Circle Diameter165.88
Length (In)18.8
Flange Diameter199.3
Anti Lock Braking SystemYes
Integrated Hub UnitYes
Flange IncludedYes
Wheel Pilot Diameter (In)4.592125984
Bolt Circle Diameter (In)6.530708661
Flange Offset1.05
Hub Pilot Diameter116.64
Flange Bolt Hole Diameter (In)0.607480315
Flange ShapeRound
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 1Grinding when the vehicle is in motion
Signs Of Wear &#38; Troubleshooting - Section 1 - HeaderSigns of wear for wheel hubs include but are not limited to:
Connector Terminal Quantity2
Wheel Stud Size14
Wheel Stud Quantity8
Anti Lock Braking System TypeSensor
Flange Diameter (In)7.846456693
Features &#38; Benefits - Bullet 6Manufactured to GM OE specification for fit, form, and function
Features &#38; Benefits - Bullet 2Supported and allowed to rotate by the wheel bearing
Features &#38; Benefits - Bullet 3GM OE bearing designs are dimensionally optimized to work with their mating parts
Features &#38; Benefits - Bullet 4GM-recommended replacement part for your GM vehicle's original factory component
Features &#38; Benefits - Bullet 5Offering the quality, reliability, and durability of GM OE
Features &#38; Benefits - Bullet 1Provides the attaching point for the brake rotor and road wheel
Wheel Stud Size (In)0.551181102
Wheel Studs IncludedYes
Flange Bolt Hole Quantity8
Connector GenderFemale
Hub Pilot Diameter (In)4.592125984
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 6Wheel vibration and/or wobble
Height (In)5.75
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Knocking or clunking
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3Humming, rumbling, squealing, roaring or growling
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Looseness
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 5ABS, Traction control, Stability control light.
Weight (Lb)2.84
Grade TypeOE
Vendor Part Number19419502
Package Qty1
Package TypeEA
