Vehicle Info Needed
Lowest Price GuaranteePart TypeRadiator
BrandACDELCO
Programming RequiredNo
Coolant Level Indicator PortNo
Radiator Cap IncludedNo
Transmission Oil Cooler IncludedNo
Inlet Header Length467
Inlet LocationTop Right
Engine Oil Cooler IncludedNo
Good Maintenance Practices - Section 1 - Bullet 1Replace coolant with a mixture of antifreeze and water according to the owner's manual recommendations.
Faq - Answer 1No, an overheating engine could mean an issue with your radiator, but there are other pieces of the cooling system that could cause the engine to overheat. It is important to check for coolant leaks or a malfunctioning fan. If you look at the radiator and there is a lot of corrosion or holes there may be a problem with the radiator. Either way it is important to get the whole cooling system checked when your engine overheats.
Core Width19.61
Good Maintenance Practices - Section 1 - Bullet 4Periodically, remove bugs, leaves, and other debris from the front of the radiator. They can block airflow and substantially reduce cooling efficiency.
Good Maintenance Practices - Section 1 - Bullet 2Evaluate radiator and radiator cap for leaks, corrosion, or worn cap gasket. Make sure to pressure test the cap.
Core MaterialAluminum
Inlet Diameter1.3
Good Maintenance Practices - Section 1 - Bullet 3Have cooling system inspected immediately if instrument panel-mounted temperature gauge indicates engine overheating.
Inlet Header Width3.39
Features & Benefits - Bullet 2Corrosion-resistant aluminum designed core helps optimize the radiators long lasting
Features & Benefits - Bullet 3GM-recommended replacement part for your GM vehicle's original factory component
Down Flow Or Cross Flow TypeCross Flow
Features & Benefits - Bullet 4Offering the quality, reliability, and durability of GM OE
Features & Benefits - Bullet 5Manufactured to GM OE specification for fit, form, and function
Tank MaterialPlastic

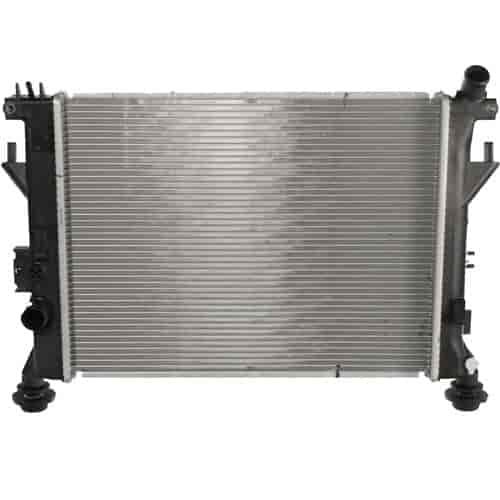

Product DescriptionACDelco GM Original Equipment Radiators are GM-recommended replacements for your vehicles original components. Radiators are heat exchangers, typically located in the front of the vehicle where air can flow through the fins and dissipate heat. Modern radiators are made from aluminum and plastic, while older vehicles used copper and brass. These radiators are designed to be corrosion resistant with optimal heat transfer characteristics. These original equipment radiators have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Core Row Quantity1
Features &#38; Benefits - Bullet 1Lightweight; the radiators have a positive heat transfer to weight ratio
Outlet Header Width3.39
Good Maintenance Practices - Section 1 - HeaderMaintain proper coolant levels and check levels regularly. Also make sure to check coolants concentration because the water ratio can affect the freezing or boiling point. (Note: Never attempt to remove a surge or radiator cap while the engine is hot. Serious injury could result.)
Outlet Diameter1.14
Width (In)3.7
Outlet Header Length447
Mounting Hardware IncludedNo
Thermostat IncludedNo
Internal Transmission Oil CoolerNo
Mounting TypePin
Core Height14.83
Core Thickness0.63
Height (In)3.05
Internal Engine Oil CoolerNo
Outlet LocationBottom Left
Length (In)19.15
Weight (Lb)4.12
Grade TypeOE
Frame IncludedYes
Faq - Question 1My engine is overheating does this mean I need to replace my radiator?
Vendor Part Number21720
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
