Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

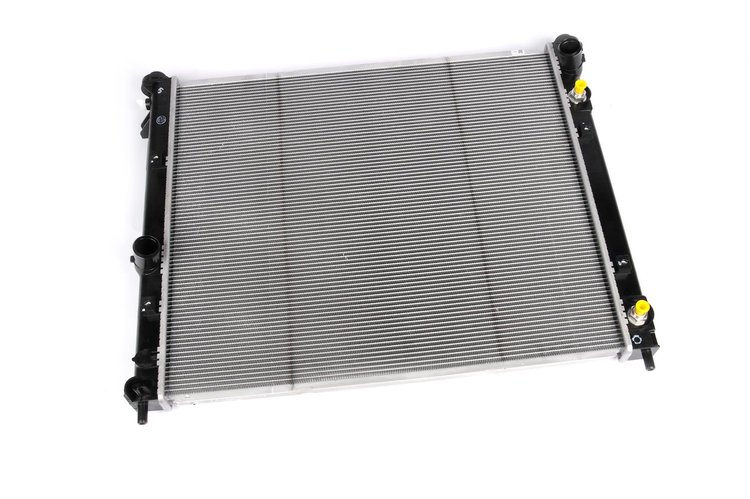

- Radiator
Part TypeRadiator
BrandACDELCO
Package Height5.62
Package Width27.43
Package Length37.88
Weight20.0 PG
Coolant Level Indicator PortNo
Body TypeVarious - Application Specific
Radiator Cap IncludedNo
Transmission Oil Cooler IncludedYes
Inlet Header Length583
Engine Oil Cooler IncludedNo
Core Width23.24
Down Flow Or Cross Flow TypeCross Flow
Tank MaterialPlastic
Product DescriptionGM Genuine Parts Radiators are designed, engineered, and tested to rigorous standards, and are backed by General Motors. Radiators are heat exchangers, typically located in the front of the vehicle where air can flow through the fins and dissipate heat. Modern radiators are made from aluminum and plastic, while older vehicles used copper and brass. These radiators are designed to be corrosion resistant with optimal heat transfer characteristics. GM Genuine Pa rts are the true OE parts installed during the production of or validated by General Motors for GM vehicles. Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE). ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Transmission Oil Cooler Fitting Diameter0.47
Outlet Diameter1.14
Width (In)27.62
Outlet Header Length576
Thermostat IncludedNo
Internal Transmission Oil CoolerYes
Mounting TypePin
Transmission Oil Cooler Fitting GenderFemale
Core Height526.2
Length (In)37.88
Frame IncludedYes
Part CategoryReplacement Parts
Programming RequiredNo
Inlet Location1.14
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 1Maintain proper coolant levels and check levels regularly. Also make sure to check coolants concentration because the water ratio can affect the freezing or boiling point. (Note: Never attempt to remove a surge or radiator cap while the engine is hot. Serious injury could result.)
Faq - Answer 1No, an overheating engine could mean an issue with your radiator, but there are other pieces of the cooling system that could cause the engine to overheat. It is important to check for coolant leaks or a malfunctioning fan. If you look at the radiator and there is a lot of corrosion or holes there may be a problem with the radiator. Either way it is important to get the whole cooling system checked when your engine overheats.
Features &#38; Benefits - Bullet 6GM regularly updates production and service part designs to integrate new materials and technologies
Core MaterialAluminum
Inlet Diameter29
Inlet Header Width66
Features &#38; Benefits - Bullet 2Corrosion-resistant aluminum designed core helps optimize the radiators long lasting service life
Features &#38; Benefits - Bullet 3Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE)
Features &#38; Benefits - Bullet 4GM Genuine Parts are designed, engineered and tested to rigorous standards, and are backed by General Motors
Features &#38; Benefits - Bullet 5GM Engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle
Core Row Quantity1
Features &#38; Benefits - Bullet 1Lightweight; the radiators have a positive heat transfer to weight ratio
Outlet Header Width60
Transmission Oil Cooler Fitting TypeQuick Connect
Mounting Hardware IncludedNo
Core Thickness0.71
Transmission Oil Cooler Distance Between Fittings14.76
Height (In)5.62
Internal Engine Oil CoolerNo
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Replace coolant with a mixture of antifreeze and water according to the owner's manual recommendations.
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3Evaluate radiator and radiator cap for leaks, corrosion, or worn cap gasket. Make sure to pressure test the cap.
Outlet LocationBottom Left
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Periodically, remove bugs, leaves, and other debris from the front of the radiator. They can block airflow and substantially reduce cooling efficiency.
Part FitmentDirect Fit
Weight (Lb)20
Grade TypeOE
Faq - Question 1My engine is overheating does this mean I need to replace my radiator?
Vendor Part Number21751
Package Qty1
Package TypeEA
