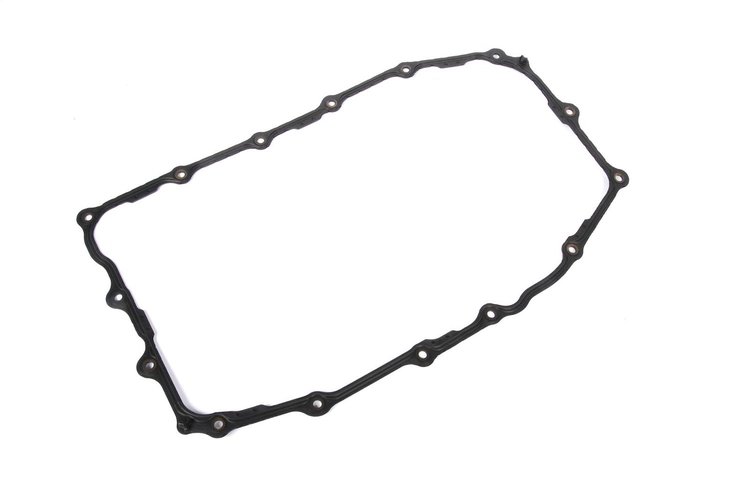

24260071 Transmission Pan Gasket Fits Select GM Trucks & SUVs 8L90, 8L45, 8L80/MFC, 8L80/MTH, 8L90/N8X, 8L45/N8R Transmissions
InfoVehicle Info Needed
ACDELCOPART NUMBER: 065-24260071

24260071 Transmission Pan Gasket Fits Select GM Trucks & SUVs 8L90, 8L45, 8L80/MFC, 8L80/MTH, 8L90/N8X, 8L45/N8R Transmissions

$3522
ShippingShips on 11/18/2026
Lowest PriceLowest Price Guarantee

Items You Need

Quick Shift Automatic Transmission Fluid [1-gallon]

JEGS

Quick Shift Automatic Transmission Fluid [1-gallon]

Part Number : 555-28071
$4274$51.99
You Save$9.25
Quick Shift Automatic Transmission Fluid [1-quart]

JEGS

Quick Shift Automatic Transmission Fluid [1-quart]

Part Number : 555-28070
$934$12.99
You Save$3.65
23400 Transmission And Transaxle Plug Set

LISLE TOOLS

23400 Transmission And Transaxle Plug Set

Part Number : 616-23400
$1499
Funnel [18 in. Overall Length]

JEGS

Funnel [18 in. Overall Length]

Part Number : 555-W4034
$499$5.99
You Save$1.00

Transmission Pan Gasket
Transmission Pan Gasket
  • Select GM Trucks & SUVs
  • Fits 8L90, 8L45, 8L80/MFC, 8L80/MTH, 8L90/N8X, 8L45/N8R Transmissions
  • One-Piece Steel-Rubber Gasket
  • 15-Bolt Pattern
  • OEM Seal and Reliability

    ACDelco 24260071 Automatic Transmission Fluid Pan Gasket:

    • OEM transmission fluid pan gasket for GM 6L80 and 6L90 6-speed automatic transmissions
    • Compatible with a wide range of late model GM trucks and SUVs including Silverado, Sierra, Tahoe, Suburban, Yukon, Escalade, and others
    • Constructed from high-quality steel with bonded rubber for a leak-proof, reusable seal
    • One-piece molded design with 15-bolt hole pattern for precise fit and easy installation
    • Manufactured to GM OE specifications for performance, durability, and fit
    • Ideal for servicing or resealing the transmission pan during fluid/filter changes

    ACDelco 24260071 Gasket Notes:

    • Designed for use with OEM or OE-style transmission pans
    • Compatible with both shallow and deep pan variants on 6L80/6L90 units depending on application
    • No sealant required — gasket is designed for dry installation
    • Reusable if removed carefully and not damaged during service
    • Torque transmission pan bolts to manufacturer specifications when reinstalling
    • Fits GM Transmission Codes: 8L90, 8L45, 8L80/MFC, 8L80/MTH, 8L90/N8X, 8L45/N8R

      • Rebuild Your Automatic Transmission with OEM Parts

      Genuine ACDelco Automatic Transmission Parts are engineered to high standards and manufactured from premium quality components for quality and dependability you can count on even in extreme conditions. Keep your GM, all GM and on the road longer with ACDelco original equipment replacement parts.

    Part TypeAutomatic Transmission Pan Gasket
    Product LineACDelco Automatic Transmission Components
    BrandACDELCO
    Package Height0.15
    Package Width292
    Package Length494
    Weight0.26 PG
    Part CategoryReplacement Parts
    Face Width9.19
    Gasket TypeTransmission Pan
    Programming RequiredNo
    QuantitySold individually
    Gasket MaterialSilicone/Metal
    Rubber End Pieces IncludedYes
    Piece QuantityNo
    ConfigurationOne Piece
    ColorBlack
    MaterialSteel Rubber
    Thickness0.14
    Height (In).6
    Features & Benefits - Bullet 2GM Genuine Parts are designed, engineered and tested to rigorous standards, and are backed by General Motors
    Bolt Hole Quantity15
    Features & Benefits - Bullet 3GM Engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle
    Features & Benefits - Bullet 4GM regularly updates production and service part designs to integrate new materials and technologies
    Part FitmentDirect Fit
    Product DescriptionGM Genuine Parts Transmission Oil Pan Gaskets are designed, engineered, and tested to rigorous standards, and are backed by General Motors. GM Genuine Parts are the true OE parts installed during the production of or validated by General Motors for GM vehicles. Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE). &#9888;<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    Weight (Lb)0.21
    Grade TypeOE
    Features &#38;#38; Benefits - Bullet 1Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE)
    Vendor Part Number24260071
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
