Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

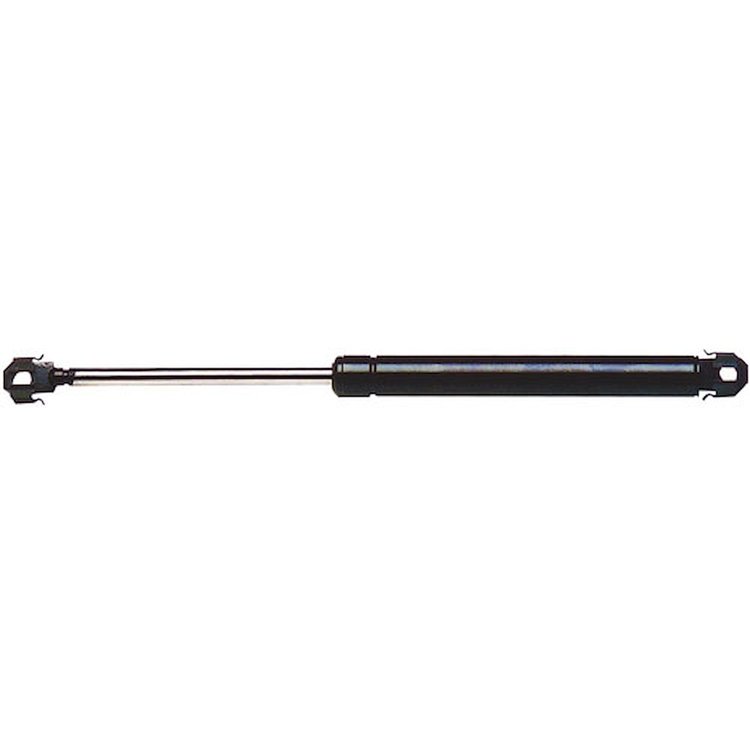

- STRUT HOOD
Part TypeLift Support
BrandACDELCO
Package Height1.0
Package Width1.5
Package Length20.0
Weight0.6 PG
Part CategoryReplacement Parts
Compressed Length (Mm)195.5
Internal Rebound SpringNo
Programming RequiredNo
Outer Cylinder Diameter (In)0.906in
End 1 Size7.93
Fully Open Length (In)12.5in
Cylinder Outside Diameter19
Good Maintenance Practices - Section 2 - HeaderIt is recommended to replace your lift supports in pairs to ensure the performance and safety of the related component, such as your hood, hatchback, or liftgate.
Outer Cylinder ColorBlack
Outer Cylinder Diameter0.906
Outer Cylinder MaterialSteel
Fully Open Length12.8 in (325.12 mm)
Inner Shaft Diameter0.394
Good Maintenance Practices - Section 1 - Bullet 1Periodically clean the surface of the rod with a dry, soft cloth.
Inner Shaft Diameter (Mm)10.00
Dampening TypeGas
Faq - Answer 1Yes. To achieve maximum product performance and service life, it is recommended to mount your lift strut 'shaft down'
Good Maintenance Practices - Section 1 - Bullet 4Avoid abrasive household cleaners, as they can scratch the rod as well.
Features & Benefits - Bullet 6Patented multi-lobe seal offers improved leak protection and long life
Features & Benefits - Bullet 7Self-cleaning piston assembly delivers smooth operation and consistent performance
Meets Or Exceeds Original Equipment ManuYes
Good Maintenance Practices - Section 1 - Bullet 2Do not use oil, silicone, adhesives, or anything that might leave a sticky residue on the rod, which could ultimately attract dust or dirt.
End 1 TypeBlade w/Retainer
Good Maintenance Practices - Section 1 - Bullet 3Avoid anything that could scratch the rod, such as clamps or clips.
Features & Benefits - Bullet 2Chromed rod increases rust and corrosion resistance for a higher quality, longer lasting, lift support
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Features & Benefits - Bullet 3Rubber O-ring piston seal for controlled lift
Extended Length12.5
Features & Benefits - Bullet 4Heavy gauge steel pressure tube provides long life
Stroke Length4.59
Features & Benefits - Bullet 5Polytetrafluroethylene (PTFE) backup ring gives enhanced performance
Damping TypeGas
Product DescriptionACDelco Professional Lift Supports are the ideal replacements for your worn out lift support struts. The pressurized, gas charged cylinders feature chromed rods and superior seals for a lasting, quality lift support replacement. Each lift support is custom engineered and manufactured to top industry standards with self-cleaning piston technology and a patented multi-lobe sealing system. ACDelco Professional Lift Supports are easy to install with simple hand tools in just minutes. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Features &#38; Benefits - Bullet 1High quality seals keep lift support fluids and gases contained within the strut components, resulting in extended product life
End 2 TypeBlade w/Retainer
Universal Or Specific FitSpecific
Maximum Force74.3
Compressed Length200.9
Good Maintenance Practices - Section 1 - HeaderImperfections on the strut rod, which would allow for oil and pressurized gas to escape the strut components, can decrease the overall life of your lift support. To help improve the service life of your lift support, keep the rod clean and free of nicks:
Outer Cylinder Diameter (Mm)23mm
Fully Open Length (Mm)317.5mm
Travel Length (In)4.59
End 2 Size7.93
Part FitmentDirect Fit
Travel Length (Mm)116.6
Minimum Force69
Faq - Question 1Is there a certain direction for lift supports to be mounted? (i.e. 'shaft up' or 'shaft down'?)
Vendor Part Number510-305
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
