Lowest Price GuaranteePart TypeRadiator
BrandACDELCO
Coolant Level Indicator PortNo
Radiator Cap IncludedNo
Transmission Oil Cooler IncludedYes
Inlet Header Length684
Engine Oil Cooler IncludedNo
Good Maintenance Practices - Section 1 - Bullet 1Replace coolant with a mixture of antifreeze and water according to the owner's manual recommendations.
Core Width660.62
Good Maintenance Practices - Section 1 - Bullet 4Periodically, remove bugs, leaves, and other debris from the front of the radiator. They can block airflow and substantially reduce cooling efficiency.
Good Maintenance Practices - Section 1 - Bullet 2Evaluate radiator and radiator cap for leaks, corrosion, or worn cap gasket. Make sure to pressure test the cap.
Good Maintenance Practices - Section 1 - Bullet 3Have cooling system inspected immediately if instrument panel-mounted temperature gauge indicates engine overheating.
Down Flow Or Cross Flow TypeDown Flow
Tank MaterialPlastic

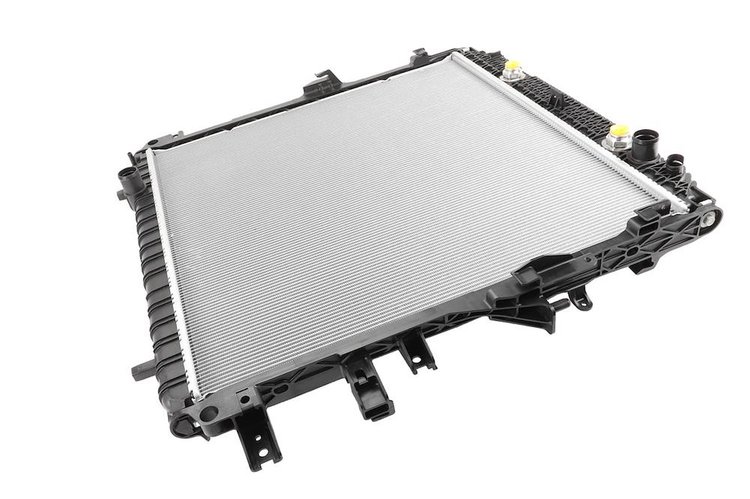

Product DescriptionACDelco GM Original Equipment Radiators are GM-recommended replacements for your vehicles original components. Radiators are heat exchangers, typically located in the front of the vehicle where air can flow through the fins and dissipate heat. Modern radiators are made from aluminum and plastic, while older vehicles used copper and brass. These radiators are designed to be corrosion resistant with optimal heat transfer characteristics. These original equipment radiators have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Transmission Oil Cooler Fitting Diameter0.83
Outlet Diameter34.15
Width (In)36.38
Outlet Header Length25.98
Thermostat IncludedNo
Internal Transmission Oil CoolerYes
Mounting TypePin
Transmission Oil Cooler Fitting GenderFemale
Core Height648.16
Length (In)41.12
Frame IncludedYes
Programming RequiredNo
Transmission Oil Cooler Length341
Inlet Location1.34
Transmission Oil Cooler TypePlate
Faq - Answer 1No, an overheating engine could mean an issue with your radiator, but there are other pieces of the cooling system that could cause the engine to overheat. It is important to check for coolant leaks or a malfunctioning fan. If you look at the radiator and there is a lot of corrosion or holes there may be a problem with the radiator. Either way it is important to get the whole cooling system checked when your engine overheats.
Core MaterialAluminum
Inlet Diameter1.34
Inlet Header Width74
Features &#38; Benefits - Bullet 2Corrosion-resistant aluminum designed core helps optimize the radiators long lasting
Features &#38; Benefits - Bullet 3GM-recommended replacement part for your GM vehicle's original factory component
Features &#38; Benefits - Bullet 4Offering the quality, reliability, and durability of GM OE
Features &#38; Benefits - Bullet 5Manufactured to GM OE specification for fit, form, and function
Core Row Quantity1
Features &#38; Benefits - Bullet 1Lightweight; the radiators have a positive heat transfer to weight ratio
Outlet Header Width2.8
Transmission Oil Cooler Fitting TypeQuick Connect
Good Maintenance Practices - Section 1 - HeaderMaintain proper coolant levels and check levels regularly. Also make sure to check coolants concentration because the water ratio can affect the freezing or boiling point. (Note: Never attempt to remove a surge or radiator cap while the engine is hot. Serious injury could result.)
Mounting Hardware IncludedNo
Core Thickness52.76
Transmission Oil Cooler Distance Between Fittings300
Height (In)8.38
Internal Engine Oil CoolerNo
Outlet LocationBottom Left
Transmission Oil Cooler Plate Quantity4
Weight (Lb)10.81
Grade TypeOE
Faq - Question 1My engine is overheating does this mean I need to replace my radiator?
Vendor Part Number84671373
Package Qty1
Package TypeEA
