Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

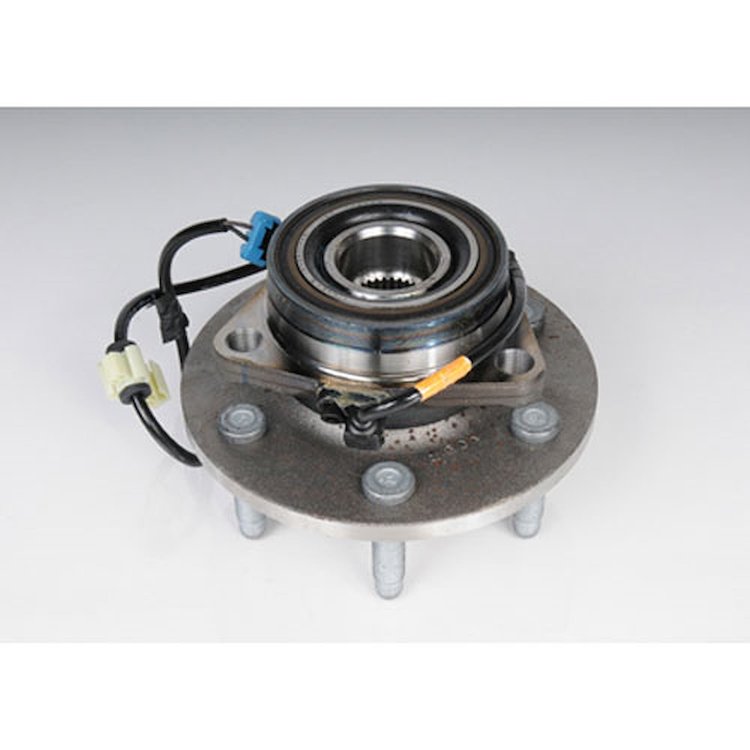

- Front Passenger Side Wheel Hub and Bearing Assembly
Part TypeAxle Hub Assembly
BrandACDELCO
Package Height6.1
Package Width8.3
Package Length8.8
Weight13.7 PG
Wheel Pilot Diameter77.77
Flange Bolt Hole Diameter15.31
Brake Pilot Diameter (In)3.085433071
Wheel Stud Size (Mm)14.00
Good Maintenance Practices - Section 1 - Bullet 1Tighten the wheel hub axle nut to recommended specs, overtightening may cause premature wear to the hub assembly
Terminal GenderMale
Brake Pilot Diameter (Mm)78.35
Good Maintenance Practices - Section 1 - Bullet 2Do not operate vehicle with a worn wheel hub assembly
Good Maintenance Practices - Section 1 - Bullet 3For bearings that are bolted onto knuckles, apply GM-recommended grease between bearing knuckle pilot and knuckle bore for easy of future removal. Take special care to avoid getting grease in the threads.
Product DescriptionACDelco GM Original Equipment Wheel Hubs provide the attaching point for the brake rotor and road wheel, and are GM-recommended replacements for your vehicle's original components. These wheel hubs are supported and allowed to rotate by the wheel bearing. These original equipment wheel hubs have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Connector Quantity1
Brake Pilot Diameter78.37
Spline Quantity33
Width (In)1.7
Flange Bolts IncludedYes
Wheel Pilot Diameter (Mm)77.800
Bolt Circle Diameter126.39
Bolt Circle Diameter (Mm)139.70
Length (In)0.65
Flange Diameter180
Flange Offset (Mm)49.60
Anti Lock Braking SystemYes
Integrated Hub UnitYes
PositionFront Right
Wheel Pilot Diameter (In)3.061811024
Bolt Circle Diameter (In)4.975984252
Flange Offset49.6
Hub Pilot Diameter77.77
Flange Diameter (Mm)180.00
Part CategoryReplacement Parts
Flange Bolt Hole Diameter (In)0.602755906
Hub Pilot Diameter (Mm)99.30
Programming RequiredNo
Flange ShapeRound
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 1Grinding when the vehicle is in motion
Flange Bolt Hole Diameter (Mm)14.00
Signs Of Wear &#38; Troubleshooting - Section 1 - HeaderSigns of wear for wheel hubs include but are not limited to:
Connector Terminal Quantity2
Wheel Stud Size14
Wheel Stud Quantity6
Anti Lock Braking System TypeSensor
Meets Or Exceeds Original Equipment ManuYes
Flange Diameter (In)7.086614173
Features &#38; Benefits - Bullet 6Manufactured to GM OE specification for fit, form, and function
Features &#38; Benefits - Bullet 2Supported and allowed to rotate by the wheel bearing
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Features &#38; Benefits - Bullet 3GM OE bearing designs are dimensionally optimized to work with their mating parts
Features &#38; Benefits - Bullet 4GM-recommended replacement part for your GM vehicle's original factory component
Features &#38; Benefits - Bullet 5Offering the quality, reliability, and durability of GM OE
Features &#38; Benefits - Bullet 1Provides the attaching point for the brake rotor and road wheel
Wheel Stud Size (In)0.551181102
Wheel Studs IncludedYes
Flange Bolt Hole Quantity6
Connector GenderFemale
Hub Pilot Diameter (In)3.061811024
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 6Wheel vibration and/or wobble
Height (In)0.3
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Knocking or clunking
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3Humming, rumbling, squealing, roaring or growling
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Looseness
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 5ABS, Traction control, Stability control light.
Part FitmentDirect Fit
Package IncludesWheel Speed Sensor and Wheel Studs
Weight (Lb)0.1
Grade TypeOE
Vendor Part NumberFW169
Package Qty1
Package TypeEA
