Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

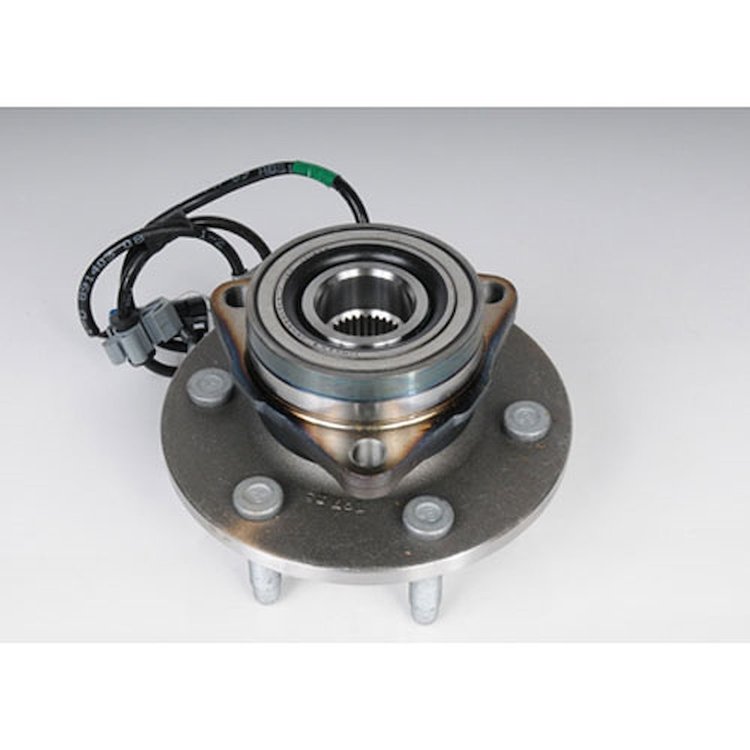

- Front Driver Side Wheel Hub and Bearing Assembly
Part TypeWheel Bearing and Hub Assembly
BrandACDELCO
Package Height6.7
Package Width8.6
Package Length9.1
Weight12.0 PG
Part CategoryReplacement Parts
Programming RequiredNo
Flange ShapeTriangular
Wheel Stud Size (Mm)14.00
Wheel Pilot Diameter3.0629
Flange Bolt Hole Diameter14
Brake Pilot Diameter (Mm)78.35
Signs Of Wear & Troubleshooting - Section 1 - Bullet 1Grinding when the vehicle is in motion
Signs Of Wear & Troubleshooting - Section 1 - HeaderSigns of wear for wheel hubs include but are not limited to:
Connector Terminal Quantity2
Wheel Stud Size0.551
Wheel Stud Quantity6
Good Maintenance Practices - Section 1 - Bullet 1Tighten the wheel hub axle nut to recommended specs, overtightening may cause premature wear to the hub assembly
Anti Lock Braking System TypeSensor
Terminal GenderMale
Wheel Pilot Diameter (Mm)77.800
Bolt Circle Diameter (Mm)139.70
Features & Benefits - Bullet 6Manufactured to GM OE specification for fit, form, and function
Good Maintenance Practices - Section 1 - Bullet 2Do not operate vehicle with a worn wheel hub assembly
Flange Offset (Mm)49.60
Good Maintenance Practices - Section 1 - Bullet 3For bearings that are bolted onto knuckles, apply GM-recommended grease between bearing knuckle pilot and knuckle bore for easy of future removal. Take special care to avoid getting grease in the threads.
Features & Benefits - Bullet 2Supported and allowed to rotate by the wheel bearing
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
PositionFront Left
Features & Benefits - Bullet 3GM OE bearing designs are dimensionally optimized to work with their mating parts
Features & Benefits - Bullet 4GM-recommended replacement part for your GM vehicle's original factory component
Features & Benefits - Bullet 5Offering the quality, reliability, and durability of GM OE
Product DescriptionACDelco GM Original Equipment Wheel Hubs provide the attaching point for the brake rotor and road wheel, and are GM-recommended replacements for your vehicle's original components. These wheel hubs are supported and allowed to rotate by the wheel bearing. These original equipment wheel hubs have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Connector Quantity1
Flange Diameter (Mm)180.00
Features &#38; Benefits - Bullet 1Provides the attaching point for the brake rotor and road wheel
Hub Pilot Diameter (Mm)99.30
Brake Pilot Diameter78.35
Spline Quantity33
Width (In)8.62
Flange Bolt Hole Diameter (Mm)14.00
Wheel Studs IncludedYes
Flange Bolt Hole Quantity3
Connector GenderFemale
Flange Bolts IncludedNo
Meets Or Exceeds Original Equipment ManuYes
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 6Wheel vibration and/or wobble
Height (In)6.75
Bolt Circle Diameter5.5
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Knocking or clunking
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3Humming, rumbling, squealing, roaring or growling
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Looseness
Length (In)9.12
Flange Diameter180
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 5ABS, Traction control, Stability control light.
Anti Lock Braking SystemYes
Part FitmentDirect Fit
Flange Offset49.6
Package IncludesWheel Speed Sensor and Wheel Studs
Weight (Lb)12
Grade TypeOE
Hub Pilot Diameter99.3
Vendor Part NumberFW170
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
