Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

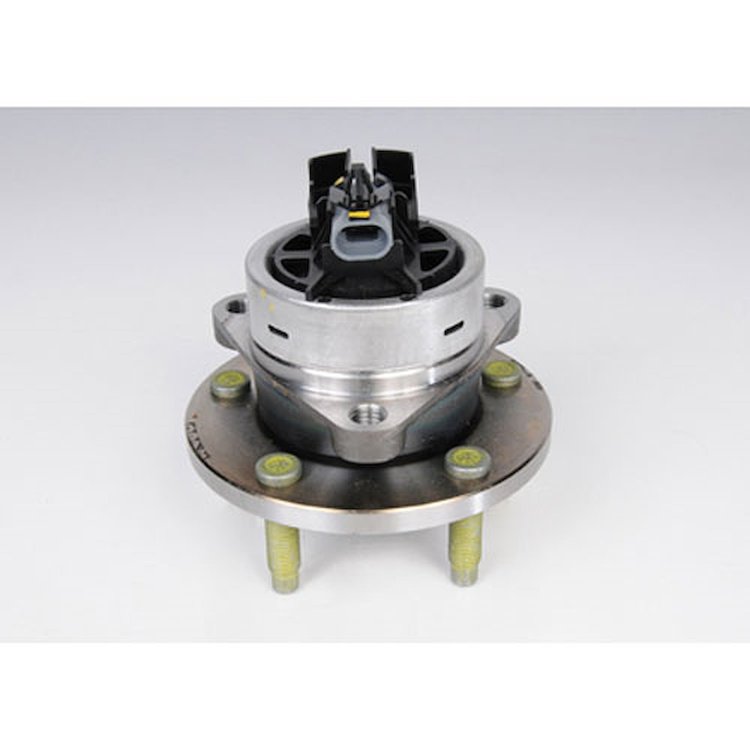

- Front Wheel Hub and Bearing Assembly with Wheel Speed Sensor and Wheel Studs
Part TypeAxle Hub Assembly
BrandACDELCO
Package Height6.7
Package Width108.95
Package Length8.5
Weight6.9 PG
Weight6.9
Wheel Pilot Diameter65.45
Flange Bolt Hole Diameter12
Good Maintenance Practices - Section 1 - Bullet 1Be sure to have the bearing properly aligned when pressing it into the spindle assembly and do not overtighten center hub bearing to constant velocity shaft nut.
Wheel Stud Size (Mm)12.00
Terminal GenderMale
Brake Pilot Diameter (Mm)65.40
Good Maintenance Practices - Section 1 - Bullet 2Follow the manufacturers recommended torque specification.
Product DescriptionACDelco GM Original Equipment Wheel Bearings allow the wheel to rotate with minimal friction, and are GM-recommended replacements for your vehicle's original components. Wheel bearings support the weight of the vehicle and are lubricated with axle oil or wheel bearing grease. These original equipment wheel bearings have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Connector Quantity1
Brake Pilot Diameter5.39
Spline Quantity33
Flange Bolts IncludedNo
Bolt Circle Diameter4.33
Wheel Pilot Diameter (Mm)65.00
Bolt Circle Diameter (Mm)110.00
Length (In)7
Flange Diameter137
Anti Lock Braking SystemYes
Flange Offset (Mm)39.00
Flange IncludedYes
Outside Diameter137
PositionFront
Flange Offset39
Part CategoryReplacement Parts
Programming RequiredNo
Flange Diameter (Mm)137.00
Flange ShapeTriangular
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 1Grinding or humming noise from bearing assembly maybe more noticeable while turning
Signs Of Wear &#38; Troubleshooting - Section 1 - HeaderSigns of wear for wheel bearings include but are not limited to:
Connector Terminal Quantity2
Wheel Stud Size0.47
Flange Bolt Hole Diameter (Mm)12.00
Wheel Stud Quantity5
Anti Lock Braking System TypeSensor
Features &#38; Benefits - Bullet 6GM-recommended replacement part for your GM vehicle's original factory component
Features &#38; Benefits - Bullet 7Offering the quality, reliability, and durability of GM OE
Meets Or Exceeds Original Equipment ManuYes
Hub Pilot Diameter3.35
Inside Diameter1.22
Features &#38; Benefits - Bullet 8Manufactured to GM OE specification for fit, form, and function
Features &#38; Benefits - Bullet 2Supports the weight of the vehicle
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Features &#38; Benefits - Bullet 3Maximum lateral stiffness for optimum ride, handling, and driving dynamics
Features &#38; Benefits - Bullet 4GM OE parts are built to help withstand potholes and designed to maximize seal life
Features &#38; Benefits - Bullet 5GM OE bearing designs are dimensionally optimized to work with their mating parts
Features &#38; Benefits - Bullet 1Allows the wheel to rotate with minimal friction
Bearing TypeBall
Wheel Studs IncludedYes
Flange Bolt Hole Quantity4
Connector GenderFemale
Hub Pilot Diameter (In)3.35
Hub Pilot Diameter (Mm)85
Height (In)6.25
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Tire and wheel vibration
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3Excessive play at tire and wheel
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Wheel hot to the touch
Part FitmentDirect Fit
Grade TypeOE
Vendor Part NumberFW299
Package Qty1
Package TypeEA
