Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

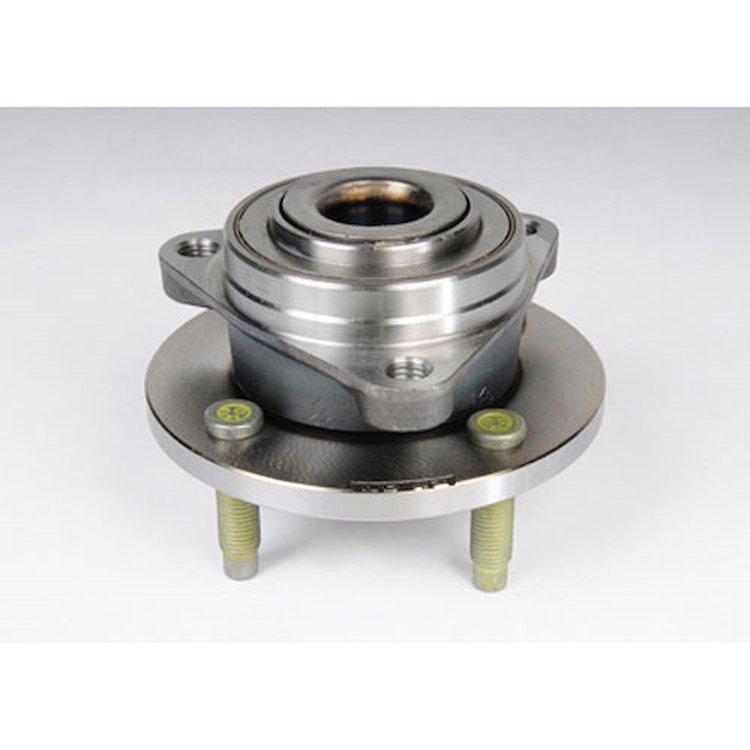

- Front Wheel Hub and Bearing Assembly with Wheel Studs
Part TypeWheel Bearing and Hub Assembly
BrandACDELCO
Package Height6.5
Package Width3.95
Package Length6.8
Weight6.66 PG
Part CategoryReplacement Parts
Programming RequiredNo
Flange ShapeTriangular
Wheel Stud Size (Mm)12.00
Wheel Pilot Diameter2.22
Brake Pilot Diameter (Mm)60.00
Flange Bolt Hole Diameter0.42
Signs Of Wear & Troubleshooting - Section 1 - Bullet 1Grinding or humming noise from bearing assembly maybe more noticeable while turning
Signs Of Wear & Troubleshooting - Section 1 - HeaderSigns of wear for wheel bearings include but are not limited to:
Front Brake TypeDisc
Wheel Stud Size0.47
Wheel Pilot Diameter (Mm)56.50
Wheel Stud Quantity4
Bolt Circle Diameter (Mm)100.00
Good Maintenance Practices - Section 1 - Bullet 1Be sure to have the bearing properly aligned when pressing it into the spindle assembly and do not overtighten center hub bearing to constant velocity shaft nut.
Features & Benefits - Bullet 6GM-recommended replacement part for your GM vehicle's original factory component
Features & Benefits - Bullet 7Offering the quality, reliability, and durability of GM OE
Flange Offset (Mm)39.00
Inside Diameter28.52
Good Maintenance Practices - Section 1 - Bullet 2Follow the manufacturers recommended torque specification.
PositionFront
Features & Benefits - Bullet 8Manufactured to GM OE specification for fit, form, and function
Features & Benefits - Bullet 2Supports the weight of the vehicle
Flange Diameter (Mm)131.80
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Features & Benefits - Bullet 3Maximum lateral stiffness for optimum ride, handling, and driving dynamics
Features & Benefits - Bullet 4GM OE parts are built to help withstand potholes and designed to maximize seal life
Rear Brake TypeDrum
Features & Benefits - Bullet 5GM OE bearing designs are dimensionally optimized to work with their mating parts
Brake SystemPower
Product DescriptionACDelco GM Original Equipment Wheel Bearings allow the wheel to rotate with minimal friction, and are GM-recommended replacements for your vehicle's original components. Wheel bearings support the weight of the vehicle and are lubricated with axle oil or wheel bearing grease. These original equipment wheel bearings have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Features &#38; Benefits - Bullet 1Allows the wheel to rotate with minimal friction
Brake Pilot Diameter131.75
Flange Bolt Hole Diameter (Mm)12.00
Spline Quantity33
Bearing TypeBall
Meets Or Exceeds Original Equipment ManuYes
Wheel Studs IncludedYes
Flange Bolt Hole Quantity3
Hub Pilot Diameter3.35
Hub Pilot Diameter (In)3.35
Flange Bolts IncludedNo
Hub Pilot Diameter (Mm)85
Bolt Circle Diameter100
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Tire and wheel vibration
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3Excessive play at tire and wheel
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Wheel hot to the touch
Flange Diameter131.8
Anti Lock Braking SystemNo
Flange IncludedYes
Part FitmentDirect Fit
Outside Diameter5.19
Flange Offset39
Grade TypeOE
Vendor Part NumberFW344
Package Qty1
Package TypeEA
