Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

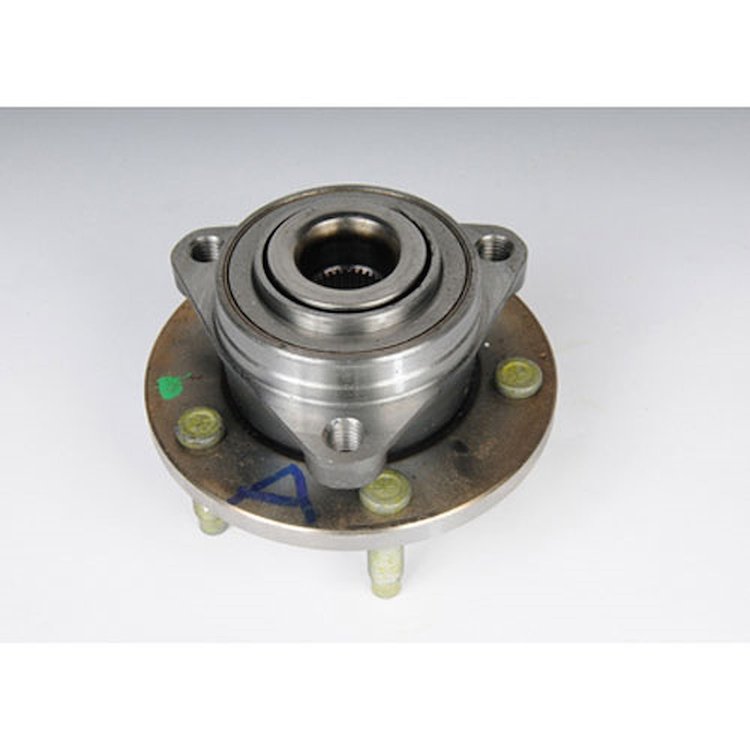

- Front Wheel Hub and Bearing Assembly with Wheel Studs
Part TypeWheel Bearing and Hub Assembly
BrandACDELCO
Package Height6.5
Package Width6.7
Package Length6.8
Weight7.5 PG
Weight7.5
Part CategoryReplacement Parts
Programming RequiredNo
Flange ShapeTriangular
Wheel Stud Size (Mm)12.00
Wheel Pilot Diameter65
Flange Bolt Hole Diameter12
Brake Pilot Diameter (Mm)65.40
Signs Of Wear & Troubleshooting - Section 1 - Bullet 1Grinding or humming noise from bearing assembly maybe more noticeable while turning
Signs Of Wear & Troubleshooting - Section 1 - HeaderSigns of wear for wheel bearings include but are not limited to:
Wheel Stud Size0.47
Front Brake TypeDisc
Wheel Stud Quantity5
Good Maintenance Practices - Section 1 - Bullet 1Be sure to have the bearing properly aligned when pressing it into the spindle assembly and do not overtighten center hub bearing to constant velocity shaft nut.
Wheel Pilot Diameter (Mm)65.000
Bolt Circle Diameter (Mm)110.00
Features & Benefits - Bullet 6GM-recommended replacement part for your GM vehicle's original factory component
Features & Benefits - Bullet 7Offering the quality, reliability, and durability of GM OE
Flange Offset (Mm)39.00
Good Maintenance Practices - Section 1 - Bullet 2Follow the manufacturers recommended torque specification.
Features & Benefits - Bullet 8Manufactured to GM OE specification for fit, form, and function
Features & Benefits - Bullet 2Supports the weight of the vehicle
PositionFront
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Features & Benefits - Bullet 3Maximum lateral stiffness for optimum ride, handling, and driving dynamics
Features & Benefits - Bullet 4GM OE parts are built to help withstand potholes and designed to maximize seal life
Features & Benefits - Bullet 5GM OE bearing designs are dimensionally optimized to work with their mating parts
Flange Diameter (Mm)137.00
Product DescriptionACDelco GM Original Equipment Wheel Bearings allow the wheel to rotate with minimal friction, and are GM-recommended replacements for your vehicle's original components. Wheel bearings support the weight of the vehicle and are lubricated with axle oil or wheel bearing grease. These original equipment wheel bearings have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rear Brake TypeDrum
Features &#38; Benefits - Bullet 1Allows the wheel to rotate with minimal friction
Brake Pilot Diameter65.4
Brake SystemPower
Spline Quantity33
Bearing TypeBall
Flange Bolt Hole Diameter (Mm)12.00
Wheel Studs IncludedYes
Flange Bolt Hole Quantity3
Hub Pilot Diameter (In)3.346
Flange Bolts IncludedNo
Meets Or Exceeds Original Equipment ManuYes
Hub Pilot Diameter3.346
Hub Pilot Diameter (Mm)85
Height (In)6.5
Bolt Circle Diameter4.33
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Tire and wheel vibration
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3Excessive play at tire and wheel
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Wheel hot to the touch
Length (In)6.8
Flange Diameter137
Anti Lock Braking SystemNo
Flange IncludedYes
Part FitmentDirect Fit
Flange Offset39
Grade TypeOE
Vendor Part NumberFW359
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
