Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

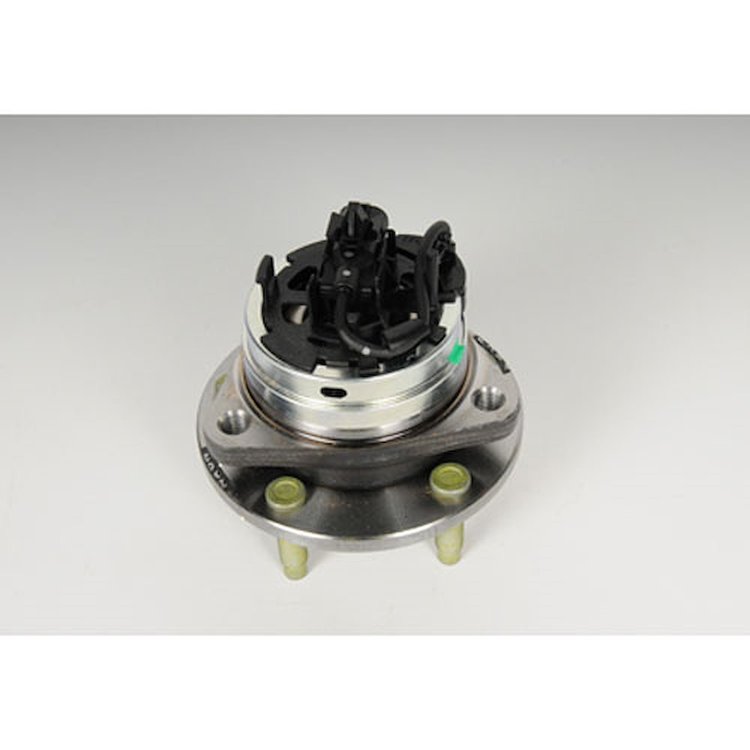

- Front Wheel Hub and Bearing Assembly with Wheel Speed Sensor and Wheel Studs
Part TypeAxle Hub Assembly
BrandACDELCO
Package Height6.5
Package Width4.67
Package Length8.5
Weight7.87 PG
Weight8.16
Part CategoryReplacement Parts
Programming RequiredNo
Flange ShapeTriangular
Wheel Stud Size (Mm)12.00
Wheel Pilot Diameter64.97
Flange Bolt Hole Diameter10.58
Brake Pilot Diameter (Mm)65.447
Signs Of Wear & Troubleshooting - Section 1 - Bullet 1Grinding or humming noise from bearing assembly maybe more noticeable while turning
Connector Terminal Quantity2
Signs Of Wear & Troubleshooting - Section 1 - HeaderSigns of wear for wheel bearings include but are not limited to:
Wheel Stud Size12
Wheel Stud Quantity5
Good Maintenance Practices - Section 1 - Bullet 1Be sure to have the bearing properly aligned when pressing it into the spindle assembly and do not overtighten center hub bearing to constant velocity shaft nut.
Anti Lock Braking System TypeSensor
Terminal GenderMale
Connector Quantity1
Features & Benefits - Bullet 6GM-recommended replacement part for your GM vehicle's original factory component
Features & Benefits - Bullet 7Offering the quality, reliability, and durability of GM OE
Wheel Pilot Diameter (Mm)64.967
Bolt Circle Diameter (Mm)110.00
Inside Diameter1.34
Good Maintenance Practices - Section 1 - Bullet 2Follow the manufacturers recommended torque specification.
Features & Benefits - Bullet 8Manufactured to GM OE specification for fit, form, and function
Flange Offset (Mm)39.00
Features & Benefits - Bullet 2Supports the weight of the vehicle
Features & Benefits - Bullet 3Maximum lateral stiffness for optimum ride, handling, and driving dynamics
PositionFront
Features & Benefits - Bullet 4GM OE parts are built to help withstand potholes and designed to maximize seal life
Features & Benefits - Bullet 5GM OE bearing designs are dimensionally optimized to work with their mating parts
Connector GenderFemale
Product DescriptionACDelco GM Original Equipment Wheel Bearings allow the wheel to rotate with minimal friction, and are GM-recommended replacements for your vehicle's original components. Wheel bearings support the weight of the vehicle and are lubricated with axle oil or wheel bearing grease. These original equipment wheel bearings have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Features &#38; Benefits - Bullet 1Allows the wheel to rotate with minimal friction
Flange Diameter (Mm)137.00
Brake Pilot Diameter5.39
Hub Pilot Diameter (Mm)89.10
Spline Quantity30
Bearing TypeBall
Wheel Studs IncludedYes
Flange Bolt Hole Diameter (Mm)12.00
Flange Bolt Hole Quantity3
Flange Bolts IncludedNo
Height (In)6.25
Meets Or Exceeds Original Equipment ManuYes
Bolt Circle Diameter134.6
Hub Pilot Diameter3.508
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Tire and wheel vibration
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3Excessive play at tire and wheel
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Wheel hot to the touch
Length (In)7
Flange Diameter137
Anti Lock Braking SystemYes
Flange IncludedYes
Part FitmentDirect Fit
Outside Diameter137
Flange Offset1.54
Grade TypeOE
Vendor Part NumberFW400
Package Qty1
Package TypeEA
