Lowest Price GuaranteePart TypeAxle Hub Assembly
BrandACDELCO
Flange Bolt Hole Diameter (In)0.472440945
Programming RequiredNo
Flange ShapeRound
Wheel Pilot Diameter56.48
Flange Bolt Hole Diameter12
Signs Of Wear & Troubleshooting - Section 1 - Bullet 1Grinding when the vehicle is in motion
Signs Of Wear & Troubleshooting - Section 1 - HeaderSigns of wear for wheel hubs include but are not limited to:
Brake Pilot Diameter (In)2.360629921
Wheel Stud Size12
Wheel Stud Quantity4
Good Maintenance Practices - Section 1 - Bullet 1Tighten the wheel hub axle nut to recommended specs, overtightening may cause premature wear to the hub assembly
Anti Lock Braking System TypeSensor
Stud Length (Mm)55.5
Flange Diameter (In)4.803149606
Features & Benefits - Bullet 6Manufactured to GM OE specification for fit, form, and function
Good Maintenance Practices - Section 1 - Bullet 2Do not operate vehicle with a worn wheel hub assembly
Good Maintenance Practices - Section 1 - Bullet 3For bearings that are bolted onto knuckles, apply GM-recommended grease between bearing knuckle pilot and knuckle bore for easy of future removal. Take special care to avoid getting grease in the threads.
Features & Benefits - Bullet 2Supported and allowed to rotate by the wheel bearing
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Features & Benefits - Bullet 3GM OE bearing designs are dimensionally optimized to work with their mating parts
Features & Benefits - Bullet 4GM-recommended replacement part for your GM vehicle's original factory component
Features & Benefits - Bullet 5Offering the quality, reliability, and durability of GM OE

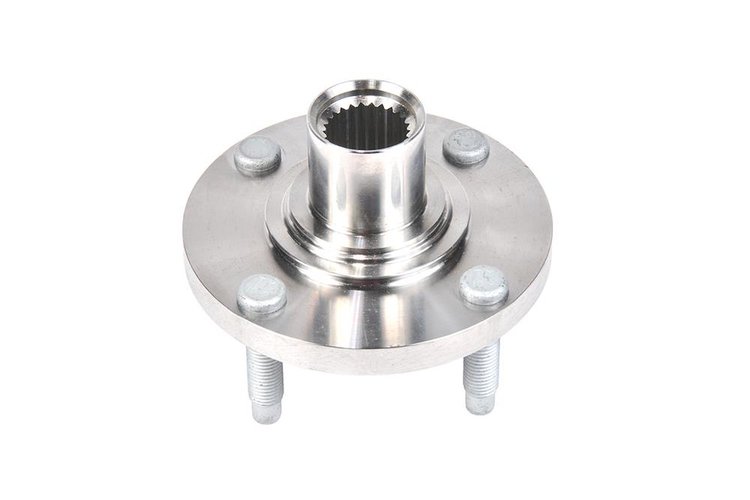

Product DescriptionACDelco GM Original Equipment Wheel Hubs provide the attaching point for the brake rotor and road wheel, and are GM-recommended replacements for your vehicle's original components. These wheel hubs are supported and allowed to rotate by the wheel bearing. These original equipment wheel hubs have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Features &#38; Benefits - Bullet 1Provides the attaching point for the brake rotor and road wheel
Wheel Stud Size (In)0.472440945
Brake Pilot Diameter59.96
Spline Quantity25
Width (In)7.2
Wheel Studs IncludedYes
Flange Bolt Hole Quantity4
Hub Pilot Diameter (In)1.496062992
Flange Bolts IncludedYes
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 6Wheel vibration and/or wobble
Height (In)7.2
Bolt Circle Diameter96.92
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Knocking or clunking
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3Humming, rumbling, squealing, roaring or growling
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Looseness
Length (In)7.7
Flange Diameter122
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 5ABS, Traction control, Stability control light.
Anti Lock Braking SystemNo
Integrated Hub UnitNo
Wheel Pilot Diameter (In)2.223622047
Bolt Circle Diameter (In)3.815748031
Weight (Lb)3.54
Stud Length (In)2.19
Grade TypeOE
Hub Pilot Diameter38
Vendor Part NumberFW437
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
