Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

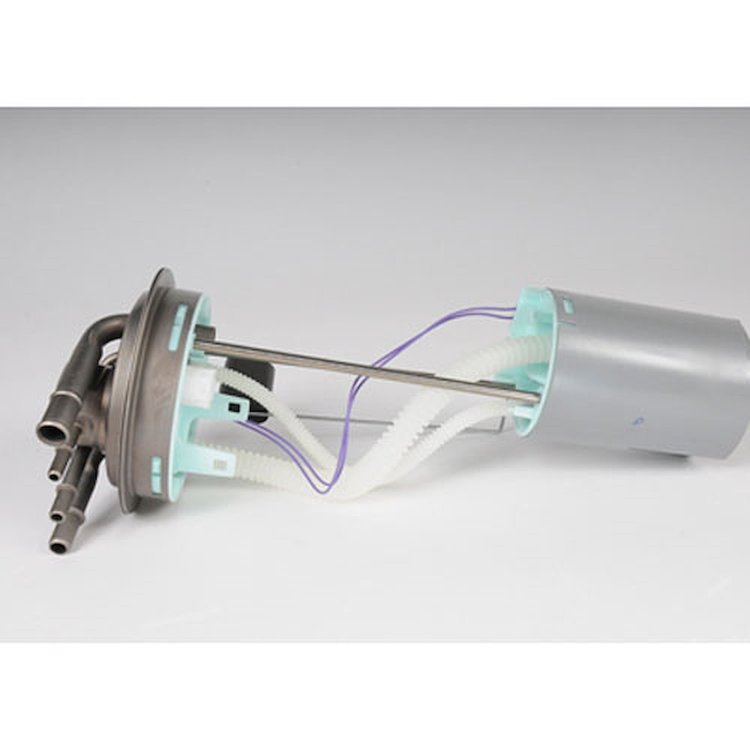

- Fuel Pump and Level Sensor Module
Part TypeFuel Pump and Sender Assembly
BrandACDELCO
Package Height10.12
Package Width13.06
Package Length8.65
Weight3.38 PG
Part CategoryReplacement Parts
Programming RequiredNo
Tank Seal Outside Diameter (Mm)147.5
Housing Width (Mm)90.35
Tank Seal Outside Diameter5.807 in (147.5 mm)
Body TypeVarious - Application Specific
Width (Mm)90.35
Housing MaterialPlastic
Tank Seal Rim ShapeRound
Wire Gauge Measurement16
Outlet Quantity1
Inlet TypeQuick Connect
Top Mount Diameter (In)5.984252
Overall Length14.8 in (375.9 mm)
Top Mount Diameter (Mm)152
Good Maintenance Practices - Section 1 - Bullet 1Refer to your Vehicle Owner's manual for additional vehicle maintenance practices.
Depth13.02 in (330.708 mm)
Terminal GenderMale
Connector ColorBlack
Tank Seal Thickness0.236 in (6 mm)
Housing Length (Mm)120.16
Inlet Diameter0.3106299
Features & Benefits - Bullet 2Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE)
Tank Seal Thickness (Mm)6.000
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Number Of DoorsVarious Application Specific
Features & Benefits - Bullet 3GM Genuine Parts are designed, engineered and tested to rigorous standards, and are backed by General Motors
Features & Benefits - Bullet 4GM Engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle
Outlet Diameter (Mm)12.26
Terminal Quantity4
Features & Benefits - Bullet 5GM regularly updates production and service part designs to integrate new materials and technologies
Seal And Lock Ring IncludedNo
Meets Or Exceeds Original Equipment ManuYes
Product DescriptionGM Genuine Parts Fuel Level Sensors are designed, engineered, and tested to rigorous standards, and are backed by General Motors. These units measure fuel level changes in your vehicle's fuel tank, which are displayed on the vehicle's fuel gauge. GM Genuine Parts are the true OE parts installed during the production of or validated by General Motors for GM vehicles. Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE). ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Features &#38; Benefits - Bullet 1Measures fuel level changes displayed on fuel gauge
Universal Or Specific FitSpecific
Volume (Cu In)1171.12cu in
Housing Width (In)3.557
Gasket Or Seal IncludedYes
Outlet Diameter12.62
Width (In)12.15
Terminal TypeBlade
Connector GenderFemale
Connector ShapeOval
Height (In)6
Outlet TypeQuick Connect
Electrical Connector Quantity1
Part FitmentDirect Fit
Housing Length (In)4.73
Weight (Lb)2.61
Grade TypeOE
Vendor Part NumberMU1228
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
