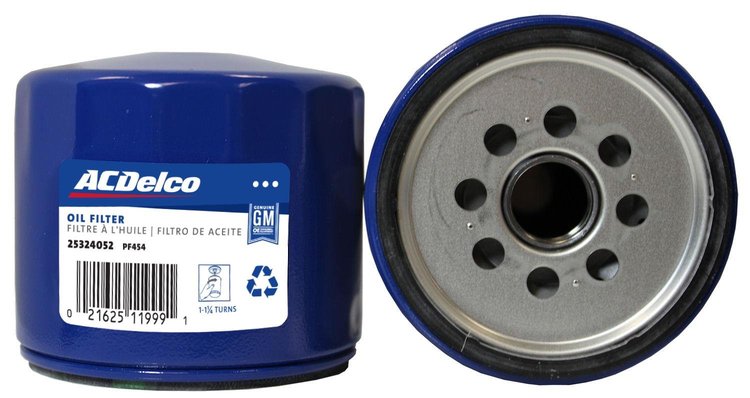

Lowest Price Guarantee- OIL FILTER
Part TypeOil Filter
BrandACDELCO
Package Height81
Package Width3.9
Package Length3.9
Weight1.0 PG
Part CategoryReplacement Parts
Inner Diameter Bottom3.59 in (91.186 mm)
Outer Diameter Bottom3.66
Gasket Outer Diameter (Mm)85.80
Universal Or Specific FitSpecific
Gasket Or Seal IncludedYes
Inner Diameter Bottom (Mm)91.10
Bypass Relief ValveYes
Outside Diameter Top3.66
Gasket Outside Diameter3.5
Inner Diameter Top3.59 in (91.186 mm)
Gasket Inner Diameter3.04 in (77.216 mm)
Gasket Inside Diameter78
Gasket Inner Diameter (Mm)77.30
Gasket Thickness0.27
Features & Benefits - Bullet 6ACDelco GM Original Equipment parts are designed, engineered and tested to rigorous standards, and are backed by General Motors.
Anti-Drain Back ValveYes
Housing ColorBlue
Features & Benefits - Bullet 7GM engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle
Number Of DoorsVarious Application Specific
Gasket TypeGasket O-Ring
Features & Benefits - Bullet 8GM regularly updates production and service part designs to integrate new materials and technologies
Features & Benefits - Bullet 2Nylon poppet style bypass valve in rear for today's high flow engines
Inner Diameter Top (Mm)91.10
Non Slip GripYes
Features & Benefits - Bullet 3The ACDelco Standard filter has 10 times more open area in the core for improved flow
Gasket Outer Diameter3.38 in (85.852 mm)
Filter TypeCanister
Features & Benefits - Bullet 4Improved filter cleanliness increased filter test life
Features & Benefits - Bullet 5Some ACDelco GM Original Equipment parts may have formerly appeared as GM Genuine Parts (OE) or ACDelco Professional
Part FitmentDirect Fit
Product DescriptionACDelco GM Original Equipment Engine Oil Filters are designed, engineered, and tested to rigorous standards, and are backed by General Motors. These engine oil filters trap debris and other contaminants before they enter the engine lubrication system. ACDelco GM Original Equipment parts are the true OE parts installed during the production of or validated by General Motors for GM vehicles. Some ACDelco GM Original Equipment parts may have formerly appeared as GM Genuine Parts (OE) or ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Grade TypeOE
Marine ApprovedNo
Features &#38; Benefits - Bullet 1ACDelco filters use a blended media, including cellulose, polyester, and microglass for optimal efficiency and greater dirt-holding capacity
Vendor Part NumberPF454
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
