Product Discontinued

ACDELCOPART NUMBER: 065-R85TS

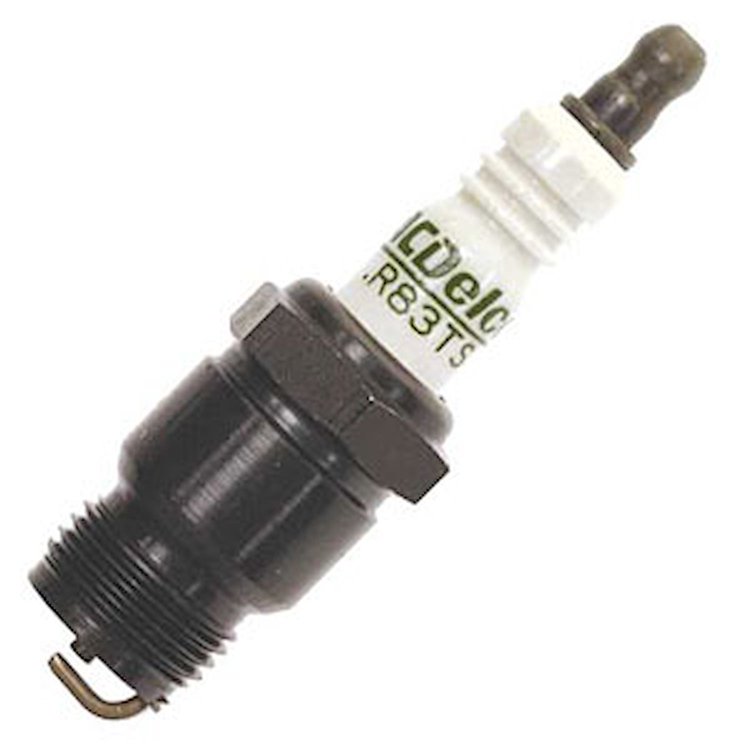

SPARK PLUG

Name: SPARK PLUG
Brand: ACDELCO
SKU: 065-R85TS
Price: 4.69 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

SPARK PLUG

Part TypeSpark Plug

BrandACDELCO

Package Height1.0

Package Width1.0

Package Length4.0

Weight0.16 PG

Hex TypeHex

Gap Size (Mm)1.12

Ground ConfigurationStandard

Center Electrode Core MaterialCopper

Reach (Mm)11.13

Good Maintenance Practices - Section 1 - Bullet 1Grasp the spark plug boot and gently rotate it 90 degrees counterclockwise. Pull the spark plug boot and cable away from the spark plug. If necessary, use a spark plug boot removing tool. DO NOT grab or violently pull spark plug cables.

Good Maintenance Practices - Section 1 - Bullet 4Remove each spark plug and place each one in a tray by cylinder number. This will help identify and relate any unusual condition to the cylinder involved.

Pack Of1

Good Maintenance Practices - Section 1 - Bullet 5Apply dielectric grease into the boot area to reduce the chance of exterior tracking on the buttress tower of the spark plug. This grease also promotes a good heat transfer between the spark terminal screw and boot terminal.

Good Maintenance Practices - Section 1 - Bullet 2Brush or air blast dirt away from the well areas before removing spark plugs. CAUTION: Use goggles to protect eyes from debris when applying compressed air to spark plug wells.

Approximate Resistor Value2-20k ohms

Good Maintenance Practices - Section 1 - Bullet 3Use the correct deep socket size to loosen each spark plug one or two turns. NOTE: To remove spark plugs from aluminum heads, allow the engine to cool. The heat of the engine, in combination with a spark plug that is still hot, may cause the spark plug threads to strip the cylinder head upon removal.

Product DescriptionACDelco Gold (Professional) Conventional Spark Plugs are a high quality alternative to Original Equipment (OE) parts. These Conventional Spark Plugs are designed for reliability and efficient performance, and are the high quality replacements for many vehicles on the road today. Their high-quality copper cores and outstanding suppression characteristics deliver reliable performance. They are also available for Marine applications. These premium aftermarket replacement spark plugs are manufactured to meet your expectations for fit, form, and function. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Center Electrode DesignStandard

Gap Size0.044 in (1.118 mm)

Width (In)3.5

Thread Diameter (Mm)14

Thread Diameter (In)0.55

Length (In)4.1

Insulator MaterialCeramic

Part CategoryReplacement Parts

Pre-Gap Size1.12

Ground Electrode Quantity1

Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 1Your engine having trouble starting, hesitating, or cutting out

Faq - Answer 8Yes, ACDelco has marine spark plugs for many applications.

Signs Of Wear &#38; Troubleshooting - Section 1 - HeaderSigns of wear for spark plugs include but are not limited to:

Faq - Answer 7No, cleaning your old spark plugs is not recommended. Dirty, fouled spark plugs may also have broken or chipped insulator tips, worn electrodes, or worn or missing side wires. These conditions severely affect spark plug performance. Replace your dirty, fouled spark plugs with new ACDelco spark plugs.

Faq - Answer 6Yes, pre-ignition can cause serious damage to your engine. Pre-ignition is the ignition of fuel before the actual spark occurs, which causes a rapid temperature rise in the combustion chamber that can damage engine components and melt spark plug electrodes. Causes of pre-ignition in clude but are not limited to a buildup of deposits that can become incandescent in the combustion chamber, improper installation torque being applied to spark plugs, and having spark plugs with a heat range that is too hot for the engine's operating condition.

Faq - Answer 5Not always, but you should inspect your spark plug wires for wear when replacing your spark plugs. Refer to your vehicle owner's manual or contact the manufacturer for more information.

Faq - Answer 4Yes. When ACDelco spark plugs are manufactured, they are pre-gapped to the correct gap specification.

Faq - Answer 3Yes. Diesel engines require glow plugs because diesel engines operate differently than gas engines. ACDelco Professional Glow Plugs are specially designed to give diesel engines the heat they need for their cold starts. Refer to your owner's manual or contact your vehicle's manufacturer for more information.

Faq - Answer 2Yes, if it is the scheduled time for spark plug replacement. It is okay to replace one spark plug if it is fouled or damaged prior to scheduled maintenance, provided the source of the damage is found and corrected.

Faq - Answer 1Yes, this interval depends on what type of spark plug your vehicle requires. Refer to your owner's manual or contact your vehicle's manufacturer for more information.

Features &#38; Benefits - Bullet 6Some ACDelco Gold parts may have formerly appeared as ACDelco Professional

Washer(S) IncludedNo

Seat TypeTapered

Features &#38; Benefits - Bullet 7Premium aftermarket replacement part

Features &#38; Benefits - Bullet 8Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models

Insulator Height60.3

Center Electrode Tip MaterialNickel Alloy

Ground Electrode Core MaterialNickel

Features &#38; Benefits - Bullet 2Copper core provides great heat transfer and helps maximize plug durability

Features &#38; Benefits - Bullet 3Ribbed suppressor seal extends resistance and helps prevent spark 'flash over' and misfires

Resistor TypeYes

Features &#38; Benefits - Bullet 4Nickel-chrome alloy sheathing helps prevent corrosion on center electrode

Features &#38; Benefits - Bullet 5Available for use in Marine applications

Manufacturer Heat Range5

Features &#38; Benefits - Bullet 1Black Onyx coating helps reduce corrosion

Reach11.1252

Ground Electrode Tip DesignStandard

Electrical Terminal TypeNon-Removable Nut

Good Maintenance Practices - Section 1 - HeaderVisually inspect spark plugs for signs of wear. Follow these steps for removing spark plugs for inspection, servicing or replacement:

Good Maintenance Practices - Section 1 - Bullet 6Before installing new spark plugs, use a gap guide to make sure your new spark plugs have the correct gap. NOTE: ACDelco Professional Iridium Spark Plugs are pre-gapped during manufacturing. Never attempt to gap an ACDelco Professional Iridium Spark Plug. You could damage the spark plug. Replace any incorrectly gapped ACDelco Professional Iridium Spark Plugs with plugs that are correctly gapped.

Good Maintenance Practices - Section 1 - Bullet 7Install spark plugs or glow plugs to the proper torque per the manufacturers' specification.

Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 6Damaged spark plug boots

Faq - Question 8Does ACDelco have marine spark plugs?

Faq - Question 7Can I just clean my spark plugs instead of replacing them?

Height (In)1.1

Faq - Question 6What is pre-ignition and can it damage my engine?

Faq - Question 5When I replace my spark plugs, should I also replace my spark plug wires?

Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Sluggish engine performance, loss of engine power, or decreased fuel economy

Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3Lack of acceleration or loss of speed when driving uphill under load

Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Cracks in the upper or lower portion of the spark plug insulator

Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 5Chipped or broken insulator tips

Faq - Question 4Are ACDelco spark plugs pre-gapped?
