Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

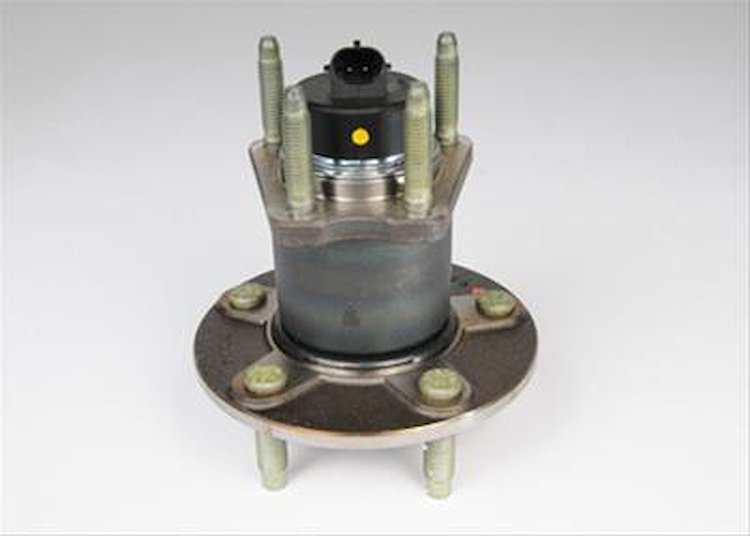

- Rear Wheel Hub and Bearing Assembly with Wheel Speed Sensor and Wheel Studs
Part TypeWheel Bearing and Hub Assembly
BrandACDELCO
Package Height6.7
Package Width7.0
Package Length8.5
Weight7.6 PG
Part CategoryReplacement Parts
Flange ShapeTriangular
Flange Offset (Mm)78.36
Wheel Pilot Diameter65.45
Flange Bolt Hole Diameter12
Signs Of Wear & Troubleshooting - Section 1 - Bullet 1Grinding or humming noise from bearing assembly maybe more noticeable while turning
Wheel Stud Size (Mm)12.00
PositionRear
Signs Of Wear & Troubleshooting - Section 1 - HeaderSigns of wear for wheel bearings include but are not limited to:
Wheel Stud Size12
Wheel Stud Quantity5
Good Maintenance Practices - Section 1 - Bullet 1Be sure to have the bearing properly aligned when pressing it into the spindle assembly and do not overtighten center hub bearing to constant velocity shaft nut.
Anti Lock Braking System TypeSensor
Brake Pilot Diameter (Mm)65.44
Features & Benefits - Bullet 6GM-recommended replacement part for your GM vehicle's original factory component
Features & Benefits - Bullet 7Offering the quality, reliability, and durability of GM OE
Inside Diameter1.3
Good Maintenance Practices - Section 1 - Bullet 2Follow the manufacturers recommended torque specification.
Features & Benefits - Bullet 8Manufactured to GM OE specification for fit, form, and function
Flange Diameter (Mm)140.0
Features & Benefits - Bullet 2Supports the weight of the vehicle
Features & Benefits - Bullet 3Maximum lateral stiffness for optimum ride, handling, and driving dynamics
Features & Benefits - Bullet 4GM OE parts are built to help withstand potholes and designed to maximize seal life
Flange Diameter5.5
Features & Benefits - Bullet 5GM OE bearing designs are dimensionally optimized to work with their mating parts
Flange Bolt Hole Diameter (Mm)10.00
Product DescriptionACDelco GM Original Equipment Wheel Bearings allow the wheel to rotate with minimal friction, and are GM-recommended replacements for your vehicle's original components. Wheel bearings support the weight of the vehicle and are lubricated with axle oil or wheel bearing grease. These original equipment wheel bearings have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Features &#38; Benefits - Bullet 1Allows the wheel to rotate with minimal friction
Brake Pilot Diameter5.39
Flange Offset3.09
Spline Quantity30
Wheel Pilot Diameter (Mm)64.96
Bearing TypeBall
Bolt Circle Diameter (Mm)110.0
Wheel Studs IncludedYes
Flange Bolt Hole Quantity3
Flange Bolts IncludedNo
Bolt Circle Diameter4.33
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Tire and wheel vibration
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3Excessive play at tire and wheel
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Wheel hot to the touch
Anti Lock Braking SystemYes
Flange IncludedYes
Part FitmentDirect Fit
Outside Diameter137
Grade TypeOE
Vendor Part NumberRW20-107
Package Qty1
Package TypeEA
