Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
BrandACDELCO
Package Height86.4
Outer Diameter Bottom76.4
Programming RequiredNo
Features & Benefits - Bullet 12Spiral wound steel core tested to twice the OEM collapse requirement
Features & Benefits - Bullet 11Heavy duty steel cover supports a high temperature gasket tested to 175C/347F
Torque NutNo
Features & Benefits - Bullet 10Ethylene Acrylate Rubber (AEM) premium anti-drainback valve tested to 175C/347F
Micron Rating30
Bypass Relief ValveYes
Gasket Outside Diameter2.76
Filter Media MaterialASTM A623
Features & Benefits - Bullet 6Poppet style bypass valve (if required) with heat treated spring matching OEM pressure specifications
Anti-Drain Back ValveYes
Features & Benefits - Bullet 7Blended media are tested beyond normal change intervals
Gasket TypeGasket O-Ring
Features & Benefits - Bullet 8Heavy duty shell is tested to four times normal engine oil pressure
Features & Benefits - Bullet 9Heavy threaded plate helps protect against pressure spikes
Features & Benefits - Bullet 2Heavy threaded plate helps protect against pressure spikes eight (8) times above normal operating pressure
Features & Benefits - Bullet 3Ethylene Acrylate Rubber (AEM) premium anti-drainback valve tested to 175C (347F)
Outer Diameter Top (In)3.05in
Features & Benefits - Bullet 4Heavy duty steel cover supports a high temperature gasket tested to 175C (347F)
Features & Benefits - Bullet 5Spiral wound steel core tested to twice the OEM collapse requirement. 30% stronger than 'straight locked' core designs

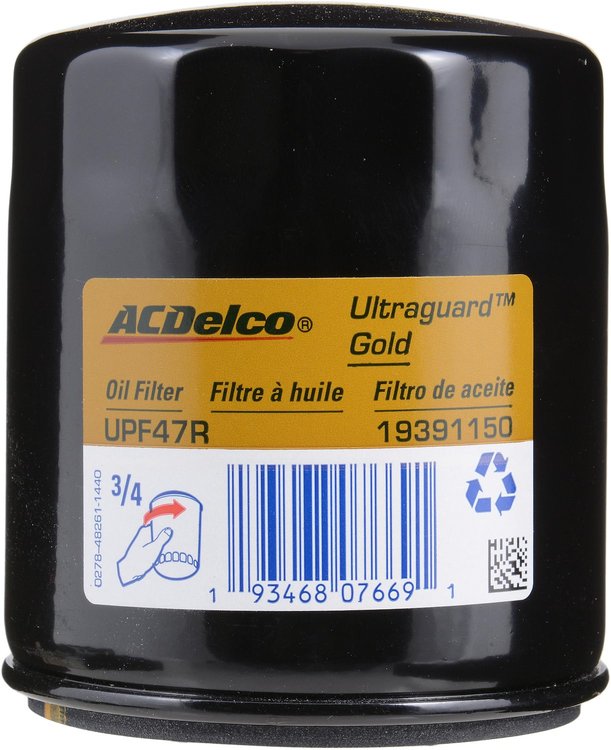

Product DescriptionACDelco Gold Enhanced Performance Ultraguard Oil Filters are designed using filtering technology that helps provide tight seals and reduced engine wear. These premium oil filters provide outstanding protection for demanding uses. With 98% multi-pass efficiency at 25-30 microns combined with increased burst-strength and durability, the ACDelco Ultraguard Oil Filter is the clear choice when performance matters. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Features &#38; Benefits - Bullet 1Heavy duty shell material is tested to four (4) times normal engine oil pressure and helps protect filter from rock impingement.
Width (In)3.2
Inside Thread SizeM18x1.5
Gasket Inside Diameter2.39
Gasket Thickness0.28
Outer Diameter Top (Mm)77.5mm
Length (In)3.6
Housing ColorBlack
Non Slip GripYes
Filter TypeSpin on
Features &#38; Benefits - Bullet 14Blended media are tested beyond normal change intervals
Features &#38; Benefits - Bullet 13Poppet style bypass valve (if required) with heat treated spring matching OREM pressure specifications
Weight (Lb)0.72
Vendor Part NumberUPF47R
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
