Vehicle Info NeededACDELCOPART NUMBER: 065-UPF64R

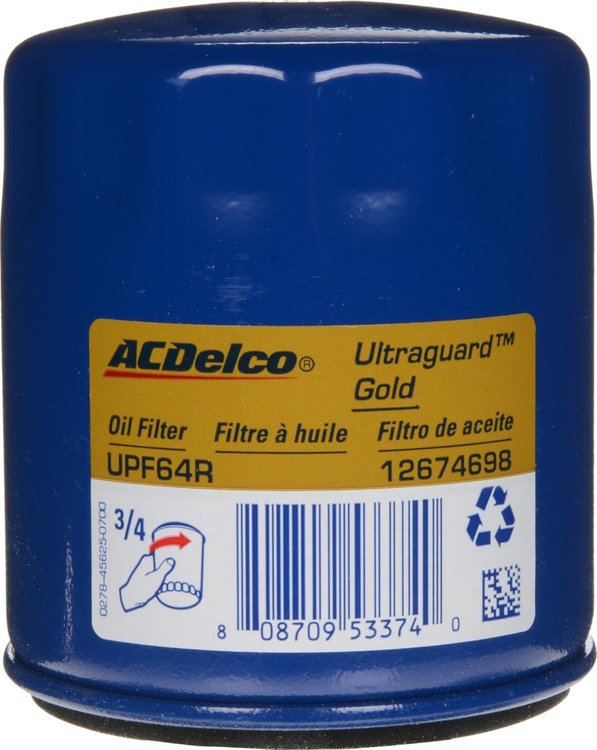

UPF64R Ultraguard Engine Oil Filter
$1099
Ships on 10/30/2026
Lowest Price Guarantee- Ultraguard Engine Oil Filter
- Thread Size: M22 x 1.50
- Height: 3.430 in.
- Diameter: 2.970 in.
- Gasket Outside Diameter: 2.780 in.
- Gasket Inside Diameter: 2.410 in.
- Gasket Thickness: 0.270 in.
- Canister
- Sold Individually
Part TypeOil Filter
BrandACDELCO
Package Height3.2
Package Width3.3
Package Length3.7
Weight0.75 PG
Part CategoryReplacement Parts
Product TypeOil Filter
Universal Or Specific FitSpecific
Programming RequiredNo
Torque NutNo
Gasket Or Seal IncludedYes
Bypass Relief ValveYes
Features & Benefits - Bullet 6Poppet style bypass valve (if required) with heat treated spring matching OEM pressure specifications
Anti-Drain Back ValveYes
Features & Benefits - Bullet 7Blended media are tested beyond normal change intervals
Gasket TypeGasket O-Ring
Features & Benefits - Bullet 8Heavy duty shell is tested to four times normal engine oil pressure
Features & Benefits - Bullet 9Heavy threaded plate helps protect against pressure spikes
Housing ColorBlack
Features & Benefits - Bullet 2Heavy threaded plate helps protect against pressure spikes eight (8) times above normal operating pressure
Non Slip GripYes
Features & Benefits - Bullet 3Ethylene Acrylate Rubber (AEM) premium anti-drainback valve tested to 175C (347F)
Features & Benefits - Bullet 4Heavy duty steel cover supports a high temperature gasket tested to 175C (347F)
Gasket MaterialRubber
Features & Benefits - Bullet 5Spiral wound steel core tested to twice the OEM collapse requirement. 30% stronger than 'straight locked' core designs
Product DescriptionACDelco Gold Enhanced Performance Ultraguard Oil Filters are designed using filtering technology that helps provide tight seals and reduced engine wear. These premium oil filters provide outstanding protection for demanding uses. With 98% multi-pass efficiency at 25-30 microns combined with increased burst-strength and durability, the ACDelco Ultraguard Oil Filter is the clear choice when performance matters. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Grade TypeOE
Marine ApprovedYes
Features &#38; Benefits - Bullet 1Heavy duty shell material is tested to four (4) times normal engine oil pressure and helps protect filter from rock impingement.
Vendor Part NumberUPF64R
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
