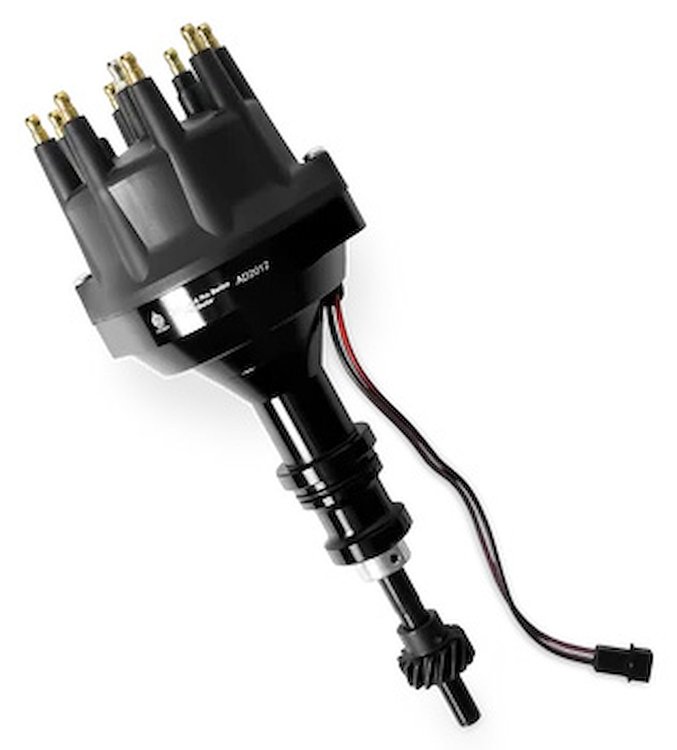

AD2012 Black Jack Pro Distributor, 289/302 Small Block Ford, Magnetic Pickup

Name: AD2012 Black Jack Pro Distributor, 289/302 Small Block Ford, Magnetic Pickup
Brand: ACES FUEL INJECTION
SKU: 021-AD2012
Price: 330.02 USD
Availability: InStock

^$330⁰²

2 left in stock

Ships Tomorrow

Lowest Price Guarantee

Ford

289/302 Small Block Ford
Magnetic Pickup

ACES Fuel Injection AD2012 Features:
Solid brass terminals
CNC-machined black anodized aluminum body and hardened steel shaft
fully adjustable mechanical advance with additional springs and bushings included.
Advance Type: Mechanical
Cap Color: Black
Coil Wie Included: No
Color: Black
Connector Type: 2 pin
Distributor Cap Included: Yes
Gear Material: Iron
Gear Tooth Quantity: 15
Grade Type: High Performance
Housing Material: Aluminum
Ignition Box Required: Yes, Only in carb applications
Ignition Coil Included: No
Ignition Rotor Included: Yes
Length (mm): 310
Marine Approved: No
Operation Type: Magnetic
Shaft Diameters (mm): 11.5, 12, 12.7
Shaft Length (mm): 127.5
Shaft Material: Iron
Terminal Gender: Male
Terminal Quantity: 8
Trigger Type: Magnetic

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Reliable Distributors for Peak Ignition Performance

ACES Fuel Injection Black Jack Pro Series Distributors are magnetic pickup-style distributors that deliver stability at speeds reaching up to 10,000 RPM, thanks to the combination of an upper-end sealed ball-bearing and a lower-end sintered steel bushing. They feature top-notch construction, with a meticulously CNC-machined body made of black anodized aluminum and a durable steel shaft. Additionally, this distributor can be easily locked out and is equipped with dependable solid brass terminals and a wire retainer that matches its color. Available for popular Ford, GM, Mopar, and Volkswagen engine applications.

Part TypeDistributor

Product LineACES Fuel Injection Black Jack Pro Series Distributors

BrandACES FUEL INJECTION

Package Height6.0

Package Width8.0

Package Length17.0

Weight5.0 PG

Part CategoryPerformance Parts

Trigger StyleMagnetic

Housing FinishBlack anodized

Housing MaterialAluminum

Distributor Cap ColorBlack
