ACT Clutch AR2-HDSD Features:

AR2-HDSD kit features ACT's most popular Heavy-Duty pressure plate. ACT Heavy-Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's street rigid-hub discs provide race-proven Performance with street manageability.

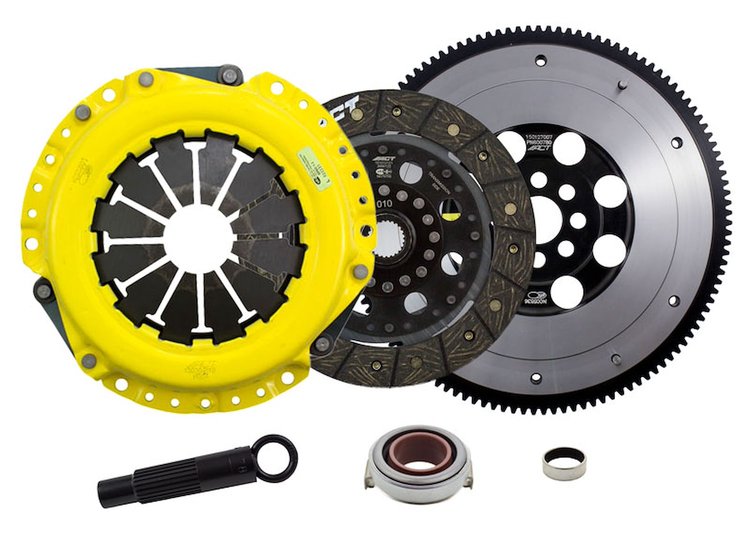

• Includes Clutch Alignment Tool (AT78), Clutch Friction Disc (3000122), Clutch Flywheel (600780), Clutch Release Bearing (RB313), Clutch Pressure Plate (H024), Clutch Pilot Bushing (PBNA004)
• Light To Moderate Pedal Effort
• Smooth Positive Engagement
• Increased Gear Rattle; Longer Friction Life
• Extended by ACT's Exclusive Diaphragm Design
• Rigid Design May Increase Spline Wear; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade; Recommended For Street And Race Use; 100-percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Flywheel Type: Streetlite
• Weight: 24.6 lbs.
• Torque Capacity: 255 ft.-lbs.
• Torque Capacity Over OE: 24-percent
• Flywheel Included: Yes
• Pilot Bushing: Yes
• Pressure Plate Type: Heavy-Duty
• Release Bearing: Yes
• Clutch Disc Diameter: 8.4 in.
• Clutch Disc Diameter: 214 mm
• Disc Material: Organic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.03125 in.
• Alignment Tool Included: Yes

ACT Clutch AR2-HDSD Notes:

• Must use ACT flywheel (included in kit).
