ACT Clutch AR2-SPG6 Features:

AR2-SPG6 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

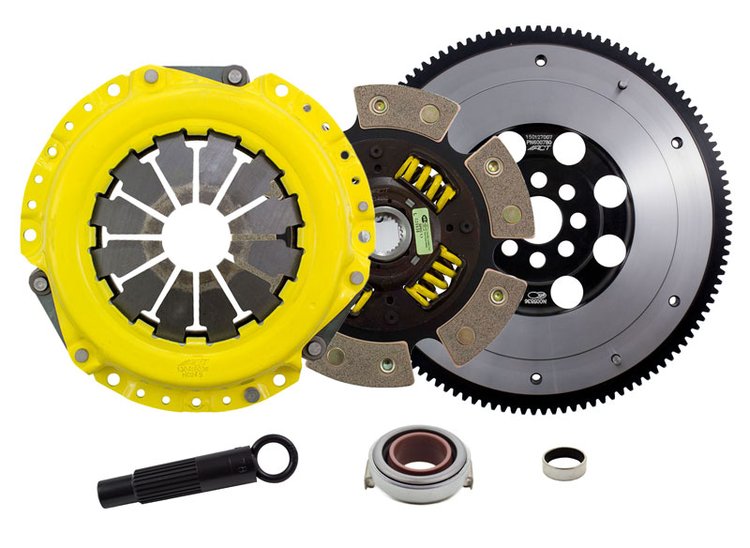

• Includes Clutch Flywheel (600780), Clutch Pilot Bushing (PBNA004), Clutch Alignment Tool (AT78), Clutch Release Bearing (RB313), Clutch Friction Disc (6214510), Clutch Pressure Plate (H024S)
• Light To Moderate Pedal Effort
• Aggressive Engagement
• Oe To Mild Gear Rattle; Moderate Friction Life
• Extended by ACT's Exclusive Diaphragm Design; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance; Recommended For High Horsepower Street Or Race Use; 100-percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Flywheel Type: Streetlite
• Weight: 26.1 lbs.
• Torque Capacity: 290 ft.-lbs.
• Torque Capacity Over OE: 40-percent
• Flywheel Included: Yes
• Pilot Bushing: Yes
• Pressure Plate Type: Sport
• Release Bearing: Yes
• Clutch Disc Diameter: 8.4 in.
• Clutch Disc Diameter: 214 mm
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.03125 in.
• Alignment Tool Included: Yes

ACT Clutch AR2-SPG6 Notes:

• Must use ACT flywheel (included in kit).
