ACT Clutch BM13-HDR6 Features:

BM13-HDR6 kit features ACT's most popular Heavy-Duty pressure plate. ACT Heavy-Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

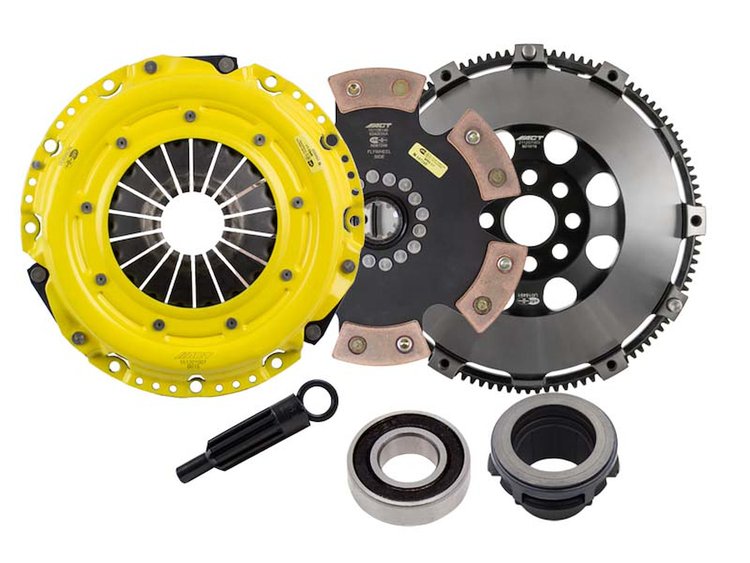

• Includes Clutch Flywheel (601016), Transmission Clutch Friction Plate (6240035), Clutch Alignment Tool (AT83), Transmission Clutch Pressure Plate (B015), Clutch Pilot Bearing (PB1002), Clutch Release Bearing (RB172)
• Light To Moderate Pedal Effort
• Aggressive Engagement
• Increased Gear Rattle; Moderate Friction Life
• Extended by ACT's Exclusive Diaphragm Design
• Rigid Design May Increase Spline Wear; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance; Recommended For Race Use Only; 100-percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Torque Capacity: 596 ft.-lbs.
• Torque Capacity Over OE: 94-percent
• Flywheel Included: Yes
• Pilot Bushing: Yes
• Weight: 23.7 lbs.
• Pressure Plate Type: Heavy-Duty
• Release Bearing: Yes
• Clutch Disc Diameter: 9.4 in.
• Clutch Disc Diameter: 240 mm
• Disc Material: Ceramic
• Input Spline Quantity: 10
• Input Shaft Diameter: 1.125 in.
• Alignment Tool Included: Yes

ACT Clutch BM13-HDR6 Notes:

• Conversion kit. Includes ACT Prolite flywheel. Must use ACT flywheel (included in kit).
