ACT Clutch BM14-XTSD Features:

BM14-XTSD kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's Street rigid-hub discs provide race-proven Performance with street manageability.

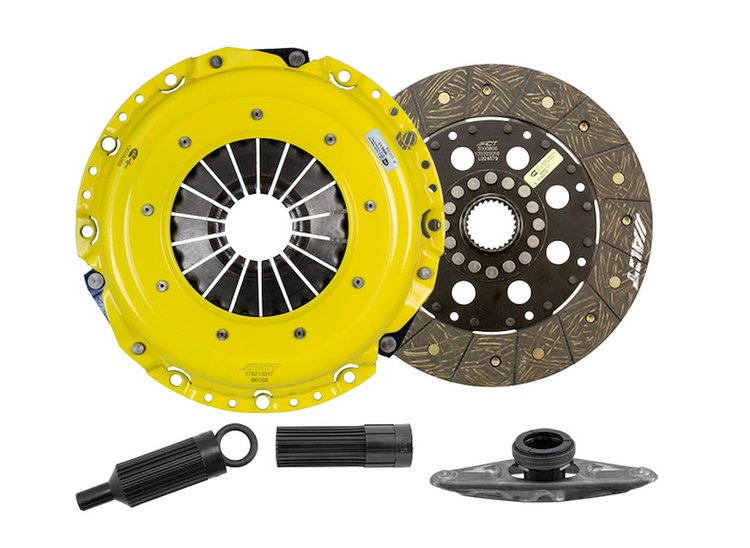

• Includes Clutch Pressure Plate (B015X), Clutch Alignment Tool (AT118), Clutch Release Bearing (RB015), Clutch Alignment Tool (AT105), Clutch Friction Disc (3000806)
• Moderate To Heavy Pedal Effort
• Smooth Positive Engagement
• Increased Gear Rattle; Longer Clutch Life Achieved Through ACT's Exclusive Diaphragm Design
• Rigid Design May Increase Spline Wear; Precisely Balanced And Uses Premium Organic Friction Materials For Heat Tolerance
• Faster Recovery From Overheating And Prevents Warping Of Mating Surfaces; Recommended For Street And Race Use; 100-percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Weight: 14.9 lbs.
• Torque Capacity: 549 ft.-lbs.
• Torque Capacity Over OE: 79-percent
• Pressure Plate Type: Xtreme
• Clutch Disc Diameter: 9.4 in.
• Clutch Disc Diameter: 240 mm
• Disc Material: Organic
• Input Spline Quantity: 26
• Input Shaft Diameter: 1.375 in.
• Alignment Tool Included: Yes

ACT Clutch BM14-XTSD Notes:

• Designed for use with OE flywheel.
