ACT Clutch BM9-XTG6 Features:

BM9-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

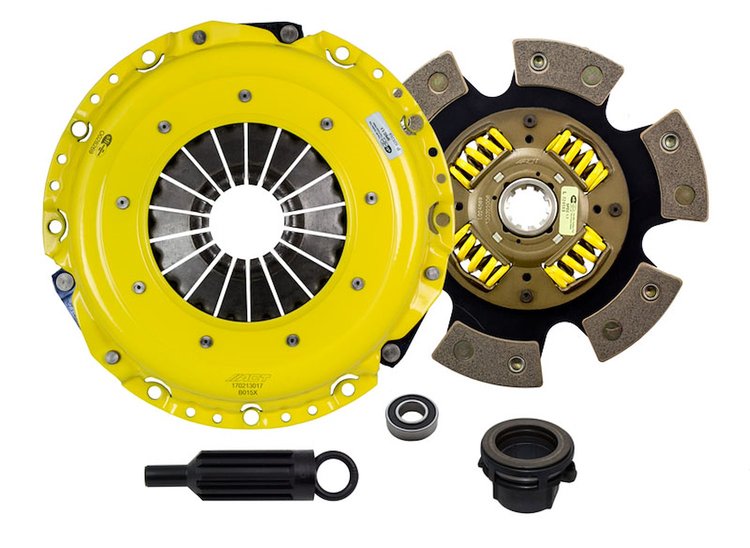

• Includes Clutch Pilot Bearing (PB1002), Clutch Release Bearing (RB1401), Clutch Pressure Plate (B015X), Clutch Friction Disc (6240529), Clutch Alignment Tool (AT25)
• Moderate To Heavy Pedal Effort
• Aggressive Engagement
• Oe To Mild Gear Rattle; Moderate Friction Life
• Extended by ACT's Exclusive Diaphragm Design; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance; Recommended For High Horsepower Street Or Race Use; 100-percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Weight: 14.0 lbs.
• Torque Capacity: 702 ft.-lbs.
• Torque Capacity Over OE: 129-percent
• Pilot Bushing: Yes
• Pressure Plate Type: Xtreme
• Release Bearing: Yes
• Clutch Disc Diameter: 9.4 in.
• Clutch Disc Diameter: 240 mm
• Disc Material: Ceramic
• Input Spline Quantity: 10
• Input Shaft Diameter: 1.375 in.
• Alignment Tool Included: Yes

ACT Clutch BM9-XTG6 Notes:

• Must use ACT flywheel with sprung hub discs for proper clearance (flywheel not included).
