ACT Clutch DN3-HDSD Features:

DN3-HDSD kit features ACT's most popular Heavy-Duty pressure plate. ACT Heavy-Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's street rigid-hub discs provide race-proven Performance with street manageability.

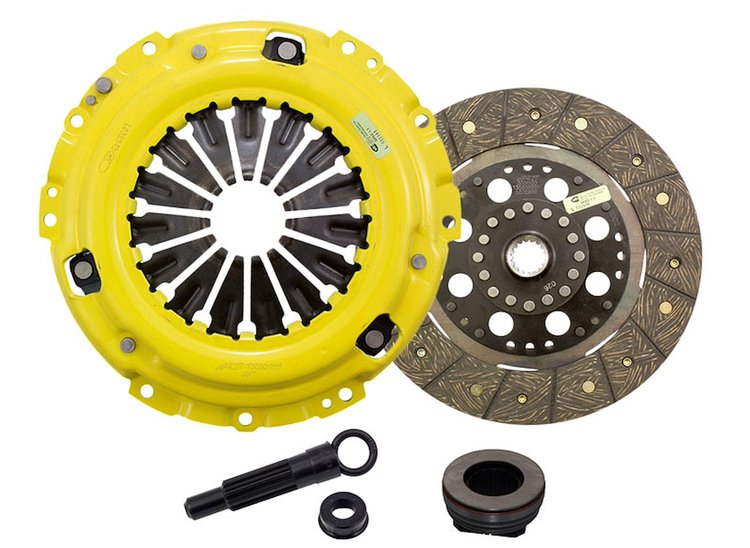

• Includes Clutch Friction Disc (3001103), Clutch Pressure Plate (D017), Clutch Alignment Tool (ATCP2), Clutch Release Bearing (RBDN1)
• Light To Moderate Pedal Effort
• Smooth Positive Engagement
• Increased Gear Rattle; Longer Friction Life
• Extended by ACT's Exclusive Diaphragm Design
• Rigid Design May Increase Spline Wear; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade; Recommended For Street And Race Use; 100-percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Weight: 14.4 lbs.
• Torque Capacity: 465 ft.-lbs.
• Torque Capacity Over OE: 47-percent
• Pressure Plate Type: Heavy-Duty
• Release Bearing: Yes
• Clutch Disc Diameter: 9.4 in.
• Clutch Disc Diameter: 240 mm
• Disc Material: Organic
• Input Spline Quantity: 17
• Input Shaft Diameter: 0.9375 in.
• Alignment Tool Included: Yes

ACT Clutch DN3-HDSD Notes:

• Conversion Kit - Replaces modular clutch. Must use ACT flywheel (not included in kit).
