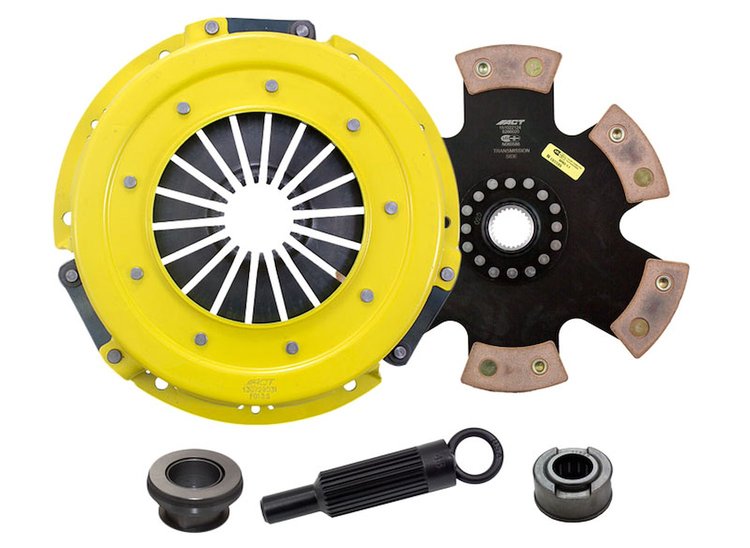

Vehicle Info NeededSport/Race Rigid 6-Pad Transmission Clutch Kit Fits Select Ford/Lincoln/Mercury/Mazda
Ships on 11/20/2026
Lowest Price GuaranteeItems You Need
![Pilot Bearing Puller Attachment [Slide Hammer Required]](https://www.jegs.com/images/mini_200/600/693/693-27059.jpg)
JEGS
Part Number : 555-79012
![Transmission Teardown Work Station [1/2-Ton Capacity]](https://www.jegs.com/images/mini_200/500/555/555-81432.jpg)
![Rolling Work Table [200 lb. Capacity]](https://www.jegs.com/images/mini_200/500/555/555-81420.jpg)
![2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]](https://www.jegs.com/images/mini_200/500/555/555-80006.jpg)
![Penetrating Oil [11 oz. Aerosol Can]](https://www.jegs.com/images/mini_200/600/639/639-11043.jpg)
![Fender Cover with Pocket [23 in. W x 31 1/2 in. L]](https://www.jegs.com/images/mini_200/500/555/555-65010.jpg)
- See Below for Fitment and Details
ACT Clutch FM4-SPR6 Features:
FM4-SPR6 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
- Includes Clutch Alignment Tool (ATF048), Clutch Pressure Plate (F013S), Clutch Release Bearing (RB1714), Clutch Friction Disc (6266020), Clutch Pilot Bearing (PB1019)
- Light To Moderate Pedal Effort
- Aggressive Engagement
- Increased Gear Rattle; Moderate Friction Life
- Extended by ACT's Exclusive Diaphragm Design
- Rigid Design May Increase Spline Wear; Carefully Engineered
- Precisely Assembled
- Accurately Balanced
- Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance; Recommended For Race Use Only; 100% Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
- Weight: 20 lbs.
- Torque Capacity: 550 ft.-lbs.
- Torque Capacity Over OE: 63%
- Pilot Bushing: Yes
- Pressure Plate Type: Sport
- Release Bearing: Yes
- Clutch Disc Diameter: 10.5 in.
- Clutch Disc Diameter: 266 mm
- Disc Material: Ceramic
- Input Spline Quantity: 26
- Input Shaft Diameter: 1.125 in.
- Alignment Tool Included: Yes
Race-Ready 4-Pad Clutch Kits
ACT Clutch Sport/Race Clutch Kits pair a sport pressure plate and 4-pad ceramic clutch disc to deliver a light-to-moderate pedal feel with aggressive, harsher engagement. These kits will increase clamp load and torque handling capacity over OE, reduce deflection for optimal performance, and offer faster shift action. Recommended for race applications and well-suited for the smaller disc sizes in smaller engines. Each includes an installation alignment tool, release bearing, and pilot bearing, where applicable. Please note these kits will increase gear rattle.
