MaXX/Race Rigid 4-Pad Transmission Clutch Kit Fits Select Acura/Honda

Name: MaXX/Race Rigid 4-Pad Transmission Clutch Kit Fits Select Acura/Honda
Brand: ACT CLUTCH
SKU: 054-HC4-XXR4
Price: 477.90 USD
Availability: OutOfStock

^$477⁹⁰$531.00You Save$53.10

Lowest Price Guarantee

Acura/Honda

MaXX/Race Rigid 4-Pad Transmission Clutch Kit

Fits Select Acura/Honda

See Below for Fitment and Details

ACT Clutch HC4-XXR4 Features:
HC4-XXR4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

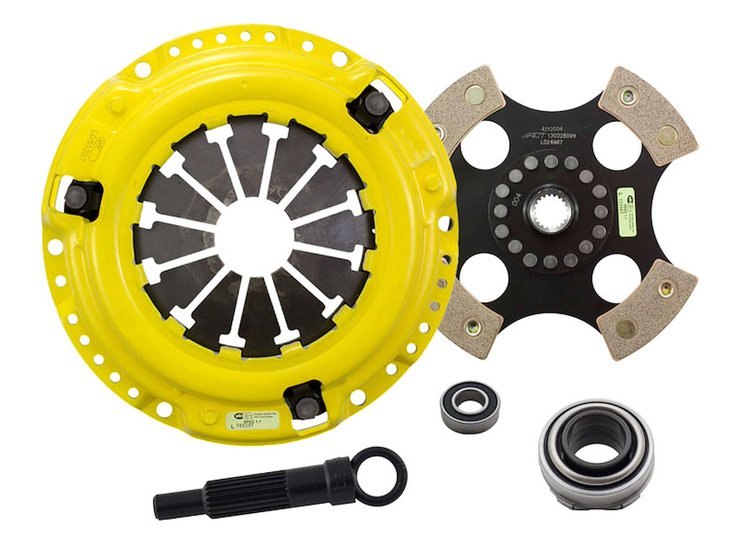

- Includes Clutch Friction Disc (4212004), Clutch Pilot Bearing (PB1002), Clutch Pressure Plate (H023XX), Clutch Alignment Tool (AT20), Clutch Release Bearing (RB427)
- Heavy To Very Heavy Pedal Effort
- Aggressive Engagement
- Quickest Shifts
- Increased Gear Rattle; Moderate Friction Life
- Extended by ACT's Exclusive Diaphragm Design
- Rigid Design May Increase Spline Wear; Carefully Engineered
- Precisely Assembled
- Accurately Balanced
- Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance; Recommended For Race Use Only; 100% Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
- Alignment Tool Included: Yes
- Weight: 9.8 lbs.
- Torque Capacity: 420 ft.-lbs.
- Torque Capacity Over OE: 173%
- Pilot Bushing: Yes
- Pressure Plate Type: MaXX
- Release Bearing: Yes
- Clutch Disc Diameter: 8.3 in.
- Clutch Disc Diameter: 212 mm
- Disc Material: Ceramic
- Input Spline Quantity: 20
- Input Shaft Diameter: 0.875 in.

MaXX Race 4-Pad Clutch Kits for High-Power Vehicles

ACT Clutch MaXX/Race Clutch Kits pair a MaXX pressure plate and 4-pad ceramic clutch disc to deliver a heavy pedal feel with aggressive, harsh engagement. These kits will increase clamp load and torque handling capacity over OE, reduce deflection for optimal performance, and offer faster shift action. Recommended for high horsepower street and race applications and well-suited for the smaller disc sizes in smaller engines. Each includes an installation alignment tool, release bearing, and pilot bearing, where applicable. Please note these kits provide a mild-to-moderate gear rattle.

Part TypeClutch Kit

Product LineACT Clutch MaXX/Race 4-Pad Clutch Kits

BrandACT CLUTCH

Package Height5.0

Package Width14.0

Package Length14.0

Weight13.3 PG

Part CategoryPerformance Parts

Part FitmentDirect Fit

Vendor Part NumberHC4-XXR4

Package Qty1

Package TypeEA
