ACT Clutch HW4-XXG6 Features:

HW4-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

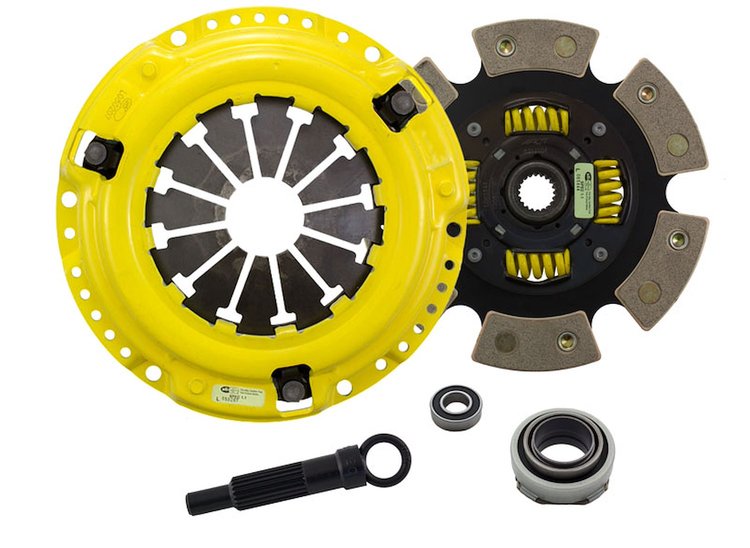

• Includes Clutch Pressure Plate (H023XX), Clutch Friction Disc (6212104), Clutch Release Bearing (RB428), Clutch Pilot Bearing (PB1002), Clutch Alignment Tool (AT20)
• Heavy To Very Heavy Pedal Effort
• Aggressive Engagement
• Quick Shifts
• Mild To Moderate Gear Rattle; Moderate Friction Life
• Extended by ACT's Exclusive Diaphragm Design; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance; Recommended For High Horsepower Street Or Race Use; 100-percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Weight: 11.2 lbs.
• Torque Capacity: 420 ft.-lbs.
• Torque Capacity Over OE: 173-percent
• Pilot Bushing: Yes
• Pressure Plate Type: MaXX
• Release Bearing: Yes
• Clutch Disc Diameter: 8.3 in.
• Clutch Disc Diameter: 212 mm
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in.
• Alignment Tool Included: Yes

ACT Clutch HW4-XXG6 Notes:

• Must be used with 90-01 SOHC flywheel.
