ACT Clutch HW4-XXR6 Features:

HW4-XXR6 features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

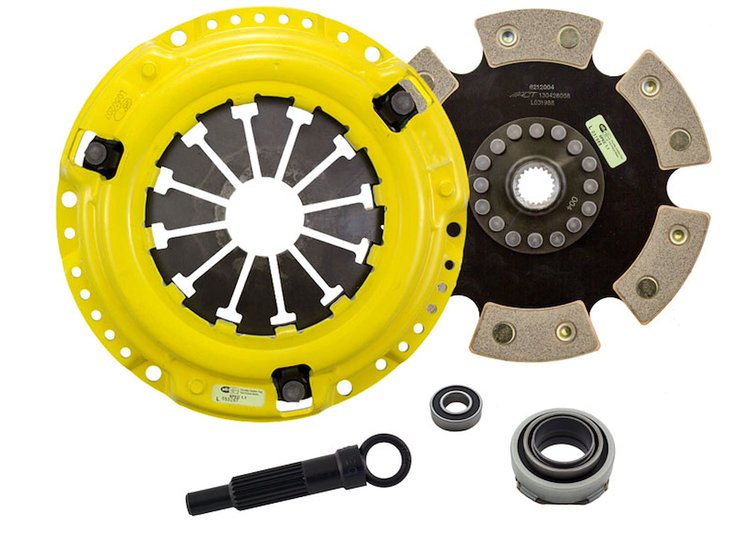

• Includes Clutch Friction Disc (6212004), Clutch Pilot Bearing (PB1002), Clutch Release Bearing (RB428), Clutch Alignment Tool (AT20), Clutch Pressure Plate (H023XX)
• Heavy To Very Heavy Pedal Effort
• Aggressive Engagement
• Quicker Shifts
• Increased Gear Rattle; Moderate Friction Life
• Extended by ACT's Exclusive Diaphragm Design
• Rigid Design May Increase Spline Wear; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance; Recommended For Race Use Only; 100-percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Weight: 10.4 lbs.
• Torque Capacity: 420 ft.-lbs.
• Torque Capacity Over OE: 173-percent
• Pilot Bushing: Yes
• Pressure Plate Type: MaXX
• Release Bearing: Yes
• Clutch Disc Diameter: 8.3 in.
• Clutch Disc Diameter: 212 mm
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in.
• Alignment Tool Included: Yes

ACT Clutch HW4-XXR6 Notes:

• Must be used with 90-01 SOHC flywheel.
