ACT Clutch SB9-XTSS Features:

SB9-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with higher copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs feature a reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal Performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

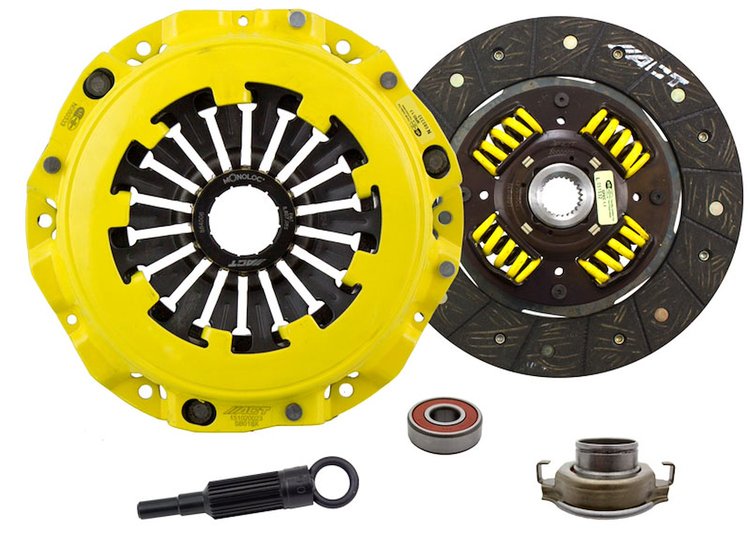

• Includes Clutch Pressure Plate (SB018X), Clutch Pilot Bearing (PB1004), Clutch Friction Disc (3000502), Clutch Release Bearing (RB601), Clutch Alignment Tool (AT90)
• Moderate To Heavy Pedal Effort
• Smooth Positive Engagement
• Oe To Mild Gear Rattle
• Confidence During Hard Shifts; Longer Friction Life
• Extended by ACT's Exclusive Diaphragm Design
• Dramatic Improvement In Release Mechanism Life; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade
• Major Improvement In Release Mechanism; Recommended For Street And Race Use; 100-percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Includes ACT's Patented Monoloc
• Weight: 16.4 lbs.
• Torque Capacity: 511 ft.-lbs.
• Torque Capacity Over OE: 50-percent
• Pilot Bushing: Yes
• Pressure Plate Type: Xtreme
• Release Bearing: Yes
• Clutch Disc Diameter: 9 in.
• Clutch Disc Diameter: 228 mm
• Disc Material: Organic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in.
• Alignment Tool Included: Yes

ACT Clutch SB9-XTSS Notes:

• Includes ACT Monoloc.
