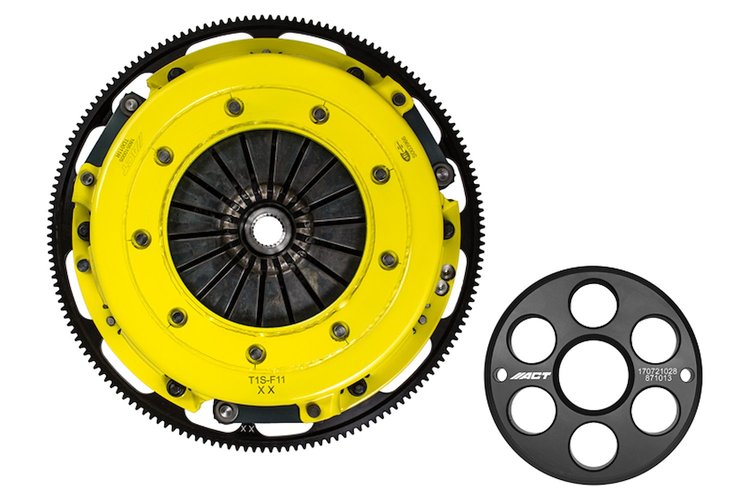

ACT Clutch T1S-F11 Features:

T1S-F11 street, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc kits features the ability to adjust for disc wear and provides equal disengagement for discs. The Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

• Light Pedal Effort
• Smooth Engagement
• Oe To Mild Gear Rattle; Disc Surfaces Doubled For Better Wear
• Heat Capacity And Longer Life
• Further Extended by ACT's Exclusive Diaphragm Design; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade; Recommended For High Horsepower Street Or Race Use; 100% Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Weight: 45.7 lbs.
• SFI: 1.2
• Torque Capacity: 891 ft.-lbs.
• Torque Capacity Over OE: 38%
• Flywheel Included: Yes
• Pilot Bushing: Yes
• Pressure Plate Type: Heavy Duty
• Clutch Disc Diameter: 10.5 in.
• Clutch Disc Diameter: 267 mm
• Disc Material: Organic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in.
• Alignment Tool Included: Yes

ACT Clutch T1S-F11 Notes:

• If vehicle is equiped witht he shorter late CSC measuring 2-1/8 inches, the spacer included in the kit must be installed. Do no install the spacer if using the taller CSC.
