Mod-Twin 225 HD Rigid Street Transmission Clutch Kit Fits Select Mitsubishi

Name: Mod-Twin 225 HD Rigid Street Transmission Clutch Kit Fits Select Mitsubishi
Brand: ACT CLUTCH
SKU: 054-T1S-M07
Price: 1755.90 USD
Availability: OutOfStock

^$1,755⁹⁰$1951.00You Save$195.10

Lowest Price Guarantee

Mitsubishi

Mod-Twin 225 HD Rigid Street Transmission Clutch Kit

Fits Select Mitsubishi

See Below for Fitment and Details

ACT Clutch T1S-M07 Features:

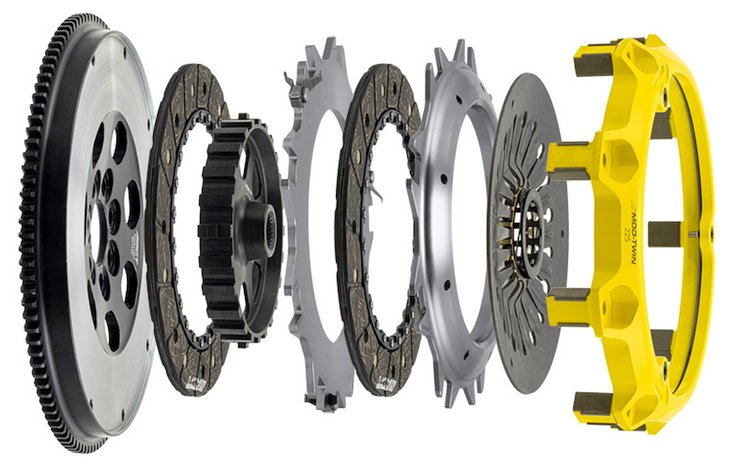

T1S-M07 Mod-Twin 225 HD Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD’s by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
- Soft Progressive Engagement
- Light Pedal Effort
- Quick Shifting
- With Mild To Moderate Transmission Gear Noise; Forged Aluminum Cover
- Mono-Drive Hub
- Exclusive Diaphragm
- Premium Friction Materials
- And Hardened Wear Points Ensure This Long-Life Twin Performs And Survives Under The Most Demanding Conditions; Delivers Maximum Performance And High Heat Tolerance By Combining Robust Design
- Strategic Features
- Choice Materials
- And Close Tolerances; Street Or Street/Strip; Applying Tactical Engineering To The Mod-Twin
- Act Presents Unique Solutions To Common Tradeoffs Found On Twin Disc Clutches
- Resulting In An Ultra-Durable
- Customer Serviceable
- Long-Lasting Clutch With Very High Torque Capacity. All Are 100% Clamp Load Tested
- Balanced And Sfi Certified
- Weight: 28.1 lbs.
- SFI: 1.2
- Torque Capacity: 700 ft.-lbs.
- Torque Capacity Over OE: 97%
- Flywheel Included: Yes
- Pressure Plate Type: Heavy Duty
- Release Bearing: Yes
- Clutch Disc Diameter: 8.8 in.
- Clutch Disc Diameter: 225 mm
- Disc Material: Organic
- Input Spline Quantity: 23
- Input Shaft Diameter: 1 in.
- Alignment Tool Included: Yes

Twin Disc Street Clutch Kits for AWD Vehicles

ACT Clutch Mod-Twin 225 HD Street Clutch Kits pair a heavy-duty pressure plate and twin organic clutch discs to deliver a light pedal feel with a positive engagement. These kits aid in improved launches and smoother shifting in high-powered AWD street and strip applications. They will increase clamp load and torque handling capacity, reduce deflection for optimal performance, and dissipates heat for longer life. Each includes an installation alignment tool, release bearing, and pilot bearing, where applicable. Please note a mild-to-moderate transmission gear noise is possible.

Part TypeClutch Kit

Product LineACT Clutch Mod-Twin 225 HD Street Clutch Kits

BrandACT CLUTCH

Package Height5.0

Package Width14.0

Package Length14.0

Weight31.0 PG

Part CategoryPerformance Parts

Part FitmentDirect Fit

Vendor Part NumberT1S-M07

Package Qty1

Package TypeEA
