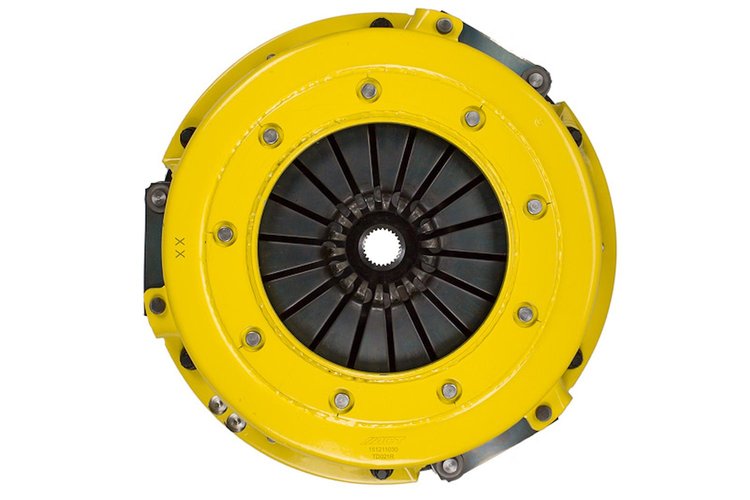

ACT Clutch T2R-D03 Features:

T2R-D03 race, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits undergo an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

• Moderate To Heavy Pedal Effort
• Quick Shifts
• Aggressive Engagement
• Oe To Moderate Gear Rattle; Disc Surfaces Doubled For Better Wear
• Heat Capacity And Longer Life
• Further Extended by ACT's Exclusive Diaphragm Design; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance; Recommended For Race Use Only; 100% Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Weight: 51.6 lbs.
• SFI: 1.2
• Torque Capacity: 1263 ft.-lbs.
• Torque Capacity Over OE: 168%
• Flywheel Included: Yes
• Clutch Disc Diameter: 10.5 in.
• Clutch Disc Diameter: 267 mm
• Disc Material: Ceramic
• Input Spline Quantity: 26
• Input Shaft Diameter: 1.125 in.
• Alignment Tool Included: Yes
