ACT Twin Disc Sint Iron Race Clutch Transmission Clutch Kit for Engine Swap G-Force 26-Spline [Custom]

Name: ACT Twin Disc Sint Iron Race Clutch Transmission Clutch Kit for Engine Swap G-Force 26-Spline [Custom]
Brand: ACT CLUTCH
SKU: 054-T2R3-T01
Price: 2241.00 USD
Availability: InStock

^$2,241⁰⁰$2490.00You Save$249.00

Ships on 09/23/2026

Lowest Price Guarantee

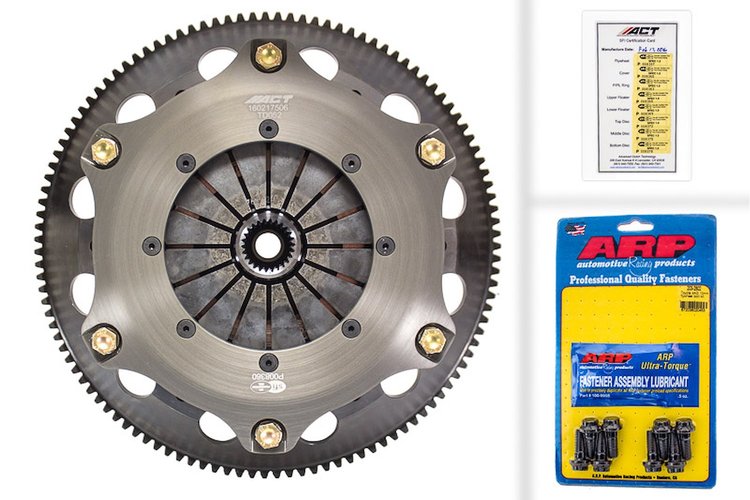

ACT Twin Disc Sint Iron Race Clutch Transmission Clutch Kit

Engine Swap G-Force 26-Spline [Custom]

Fits Select

See Below for Fitment and Details

ACT Clutch T2R3-T01 Features:
T2R3-T01 race, triple disc kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. ACT's sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. All ACT triple disc kits include a CNC-machined and dynamically balanced flywheel for trouble free use. All kits undergo an exclusive four-stage, heat-treating process on all diaphragms. ACT triple disc kits include a pressure plate, three discs, two floaters, and flywheel. Some kits may include a pilot bearing and release bearing. ACT Triple disc kits meet SFI Specification 1.2.
- Moderate To Heavy Pedal Effort
- Predictable
- Quick Engagement
- Quick Throttle Response
- Increased Gear Rattle; ACT's Exclusive Diaphragm
- Hardened Posts And High Heat Capacity For Long Life Under Severe Abuse
- Rigid Design May Increase Spline Wear; Carefully Engineered
- Precisely Assembled
- Accurately Balanced
- Chromoly Hub Is Heat-Treated For Strength And Durability; Recommended For High Horsepower Race Use Only
- Not Intended For Street; 100% Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
- Weight: 23.0 lbs.
- SFI: 1.2
- Torque Capacity: 2207 ft.-lbs.
- Flywheel Included: Yes
- Pressure Plate Type: Xtreme
- Clutch Disc Diameter: 7.25 in.
- Clutch Disc Diameter: 184 mm
- Input Spline Quantity: 26
- Input Shaft Diameter: 1.125 in.
- Alignment Tool Included: Yes
ACT Clutch T2R3-T01 Notes:
- Developed for use with 2ZJ-GTE engine using G-Force transmission, quicktime bell housing #RM-4031 without block plate and Tilton hydraulic release bearing # 61-400

Race-Ready Triple Clutch Disc Kits for 2JZ-GTE Engine Swaps

ACT Clutch Triple Disc Race Clutch Kits are race-ready, providing quick engagement and throttle response for the serious enthusiast. These kits pair the appropriate pressure plate with triple sintered iron race clutch discs that will increase clamp load and torque handling capacity, reduce deflection for optimal performance, and ultra-high heat dissipation. Recommended for high-horsepower race use only on Toyota 2JZ-GTE engines. Each includes an installation alignment tool, release bearing, and pilot bearing, where applicable. Please note an increase in gear rattle.

Part TypeClutch Kit

Product LineACT Clutch Triple Disc Race Clutch Kits

BrandACT CLUTCH

Package Height5.0

Package Width14.0

Package Length14.0

Weight26.0 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberT2R3-T01

Package Qty1

Package TypeEA
