ACT Clutch T3R-S07 Features:

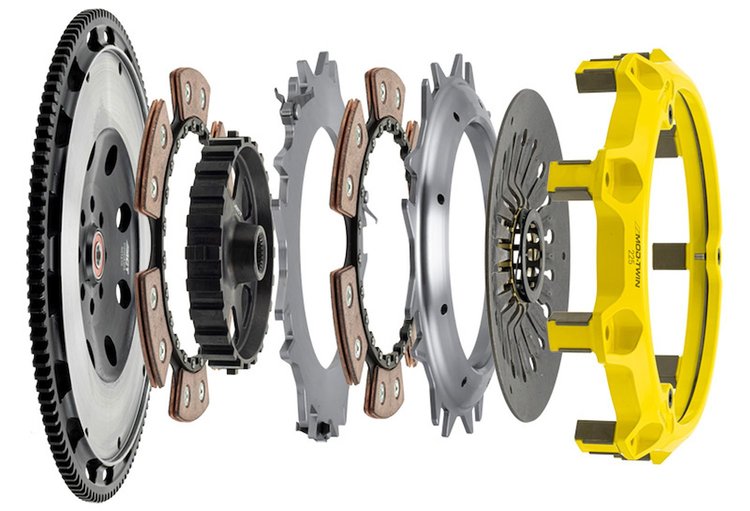

T3R-S07 Mod-Twin 225 XX Rigid Race Kit tackles aggressive launches and rapid shifting of high powered AWD’s by combining twice the ceramic friction surfaces with a no-nonsense solid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent pedal feel requiring moderate effort. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

• Predictable Aggressive Engagement
• Increased Pedal Effort
• Quick Shifting
• Possible Start-Off Judder With Mild To Moderate Transmission Gear Noise; Forged Aluminum Cover
• Mono-Drive Hub
• Exclusive Diaphragm
• Premium Friction Materials
• And Hardened Wear Points Ensure This Long-Life Twin Performs And Survives Under The Most Demanding Conditions; Delivers Maximum Performance And High Heat Tolerance By Combining Robust Design
• Strategic Features
• Choice Materials
• And Close Tolerances; Drag
• Road Or Rally Racing; Applying Tactical Engineering To The Mod-Twin
• Act Presents Unique Solutions To Common Tradeoffs Found On Twin Disc Clutches
• Resulting In An Ultra-Durable
• Customer Serviceable
• Long-Lasting Clutch With Very High Torque Capacity. All Are 100% Clamp Load Tested
• Balanced And Sfi Certified
• Weight: 51.6 lbs.
• SFI: 1.2
• Torque Capacity: 1340 ft.-lbs.
• Torque Capacity Over OE: 275%
• Flywheel Included: Yes
• Release Bearing: Yes
• Clutch Disc Diameter: 8.8 in.
• Clutch Disc Diameter: 225 mm
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in.
• Alignment Tool Included: Yes
