ACT Clutch TA1-XTG4 Features:

TA1-XTG4 kit features ACT's powerful Xtreme pressure plate and spring center 4 pad race disc delivering ultra-high torque capacity, aggressive engagement, quiet operation and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design dramatically increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled Performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s spring center 4 pad race discs boast quality parts throughout, with robust spring center sections to absorb driveline shock and premium ceramic friction materials to hold power even under the most abusive conditions.

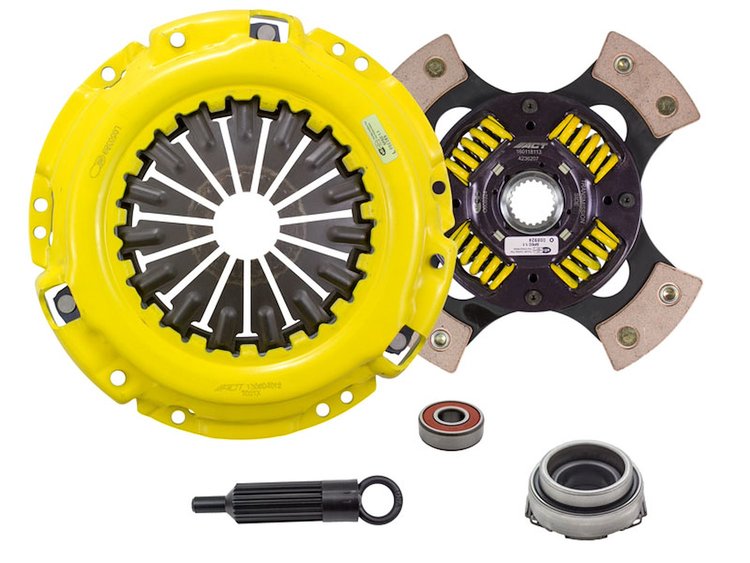

• Includes Clutch Pressure Plate (T021X), Clutch Pilot Bearing (PB1004), Clutch Friction Disc (4236207), Clutch Alignment Tool (AT11), Clutch Release Bearing (RB443)
• Moderate To Heavy Pedal Effort
• Aggressive Engagement
• Oe To Mild Gear Rattle
• Confidence During Hard Shifts; Moderate Friction Life
• Extended by ACT's Exclusive Diaphragm Design
• Increased Durability And Heat Capacity; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• Uses Premium Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
• Premium Bearings And Hardware; Recommended For High Torque Race Use; 100% Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Key Areas Induction Hardened For Longer Life.
• Weight: 16.8 lbs.
• Torque Capacity: 450 ft.-lbs.
• Torque Capacity Over OE: 107%
• Pilot Bushing: Yes
• Pressure Plate Type: Xtreme
• Release Bearing: Yes
• Clutch Disc Diameter: 9.3 in.
• Clutch Disc Diameter: 236 mm
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in.
• Alignment Tool Included: Yes
