ACT Clutch TL2-XTR4 Features:

TL2-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

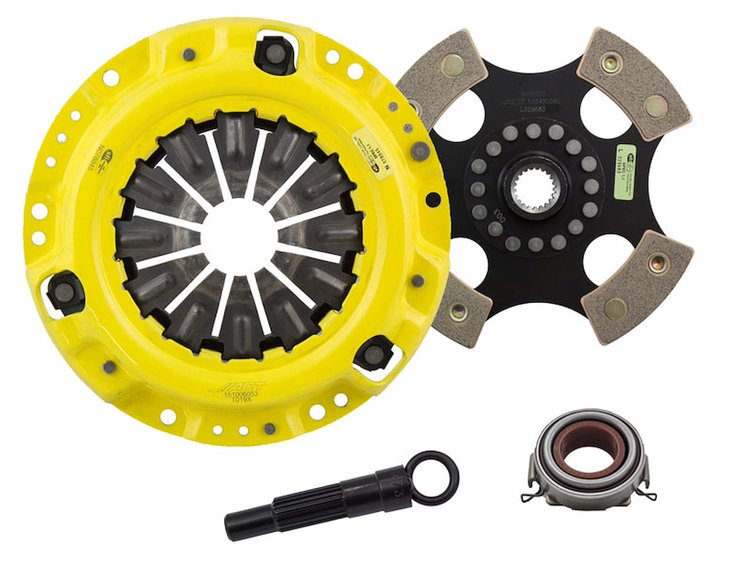

• Includes Clutch Alignment Tool (ATK73), Clutch Friction Disc (4200003), Clutch Release Bearing (RB371), Clutch Pressure Plate (T019X)
• Moderate To Heavy Pedal Effort
• Aggressive Engagement
• Increased Gear Rattle; Moderate Friction Life
• Extended by ACT's Exclusive Diaphragm Design
• Rigid Design May Increase Spline Wear; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance; Recommended For Race Use Only; 100% Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Weight: 10.1 lbs.
• Torque Capacity: 365 ft.-lbs.
• Torque Capacity Over OE: 157%
• Pressure Plate Type: Xtreme
• Release Bearing: Yes
• Clutch Disc Diameter: 7.9 in.
• Clutch Disc Diameter: 200 mm
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 0.9375 in.
• Alignment Tool Included: Yes
