ACT Clutch Z65-XXG4 Features:

Z65-XXG4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

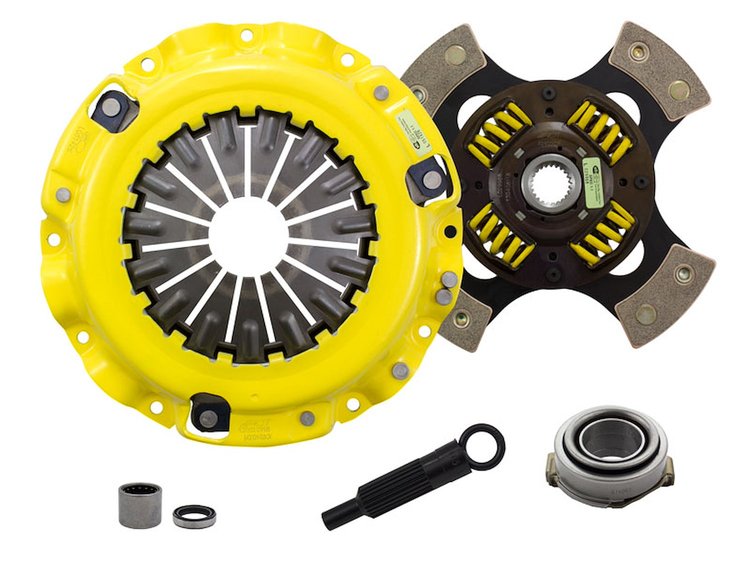

• Includes Clutch Friction Disc (4240208), Clutch Release Bearing (RB091), Clutch Pressure Plate (MZ010XX), Clutch Alignment Tool (AT03), Clutch Pilot Bearing (PB1013)
• Heavy To Very Heavy Pedal Effort
• Aggressive Engagement
• Quicker Shifts
• Mild To Moderate Gear Rattle; Moderate Friction Life
• Extended by ACT's Exclusive Diaphragm Design; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance; Recommended For High Horsepower Street Or Race Use; 100-percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Weight: 16.1 lbs.
• Torque Capacity: 625 ft.-lbs.
• Torque Capacity Over OE: 156-percent
• Pilot Bushing: Yes
• Pressure Plate Type: MaXX
• Release Bearing: Yes
• Clutch Disc Diameter: 9.4 in.
• Clutch Disc Diameter: 240 mm
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in.
• Alignment Tool Included: Yes

ACT Clutch Z65-XXG4 Notes:

• Flywheel requires counterweight (not included).
