ACT Clutch ZM1-XTSS Features:

ZM1-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

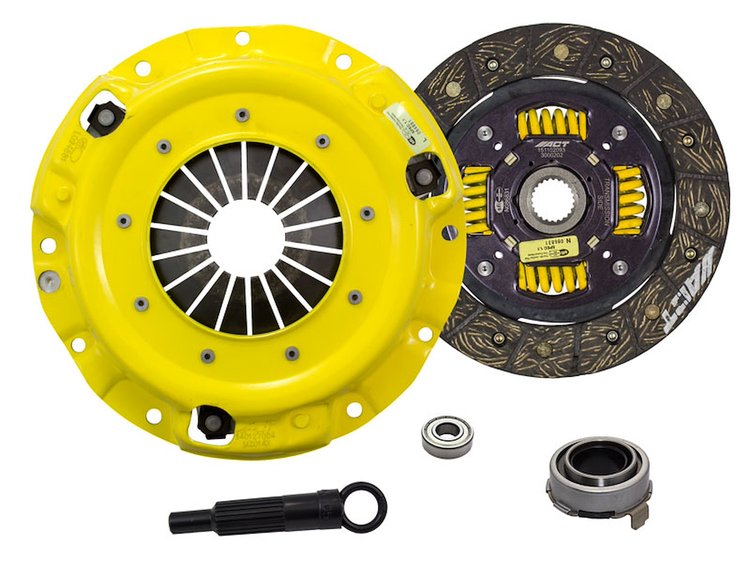

• Includes Clutch Friction Disc (3000202), Clutch Pilot Bearing (PB1005), Clutch Alignment Tool (AT05), Clutch Release Bearing (RB813), Clutch Pressure Plate (MZ014X)
• Moderate To Heavy Pedal Effort
• Smooth Engagement
• Oe To Mild Gear Rattle; Longer Friction Life
• Extended by ACT's Exclusive Diaphragm Design; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade; Recommended For Street And Race Use; 100-percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Weight: 10.9 lbs.
• Torque Capacity: 270 ft.-lbs.
• Torque Capacity Over OE: 100-percent
• Pilot Bushing: Yes
• Pressure Plate Type: Xtreme
• Release Bearing: Yes
• Clutch Disc Diameter: 7.9 in.
• Clutch Disc Diameter: 200 mm
• Disc Material: Organic
• Input Spline Quantity: 22
• Input Shaft Diameter: 0.9375 in.
• Alignment Tool Included: Yes

ACT Clutch ZM1-XTSS Notes:

• Must be used with factory flywheel.
