ACT Clutch ZX6-XTR6 Features:

ZX6-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal Performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

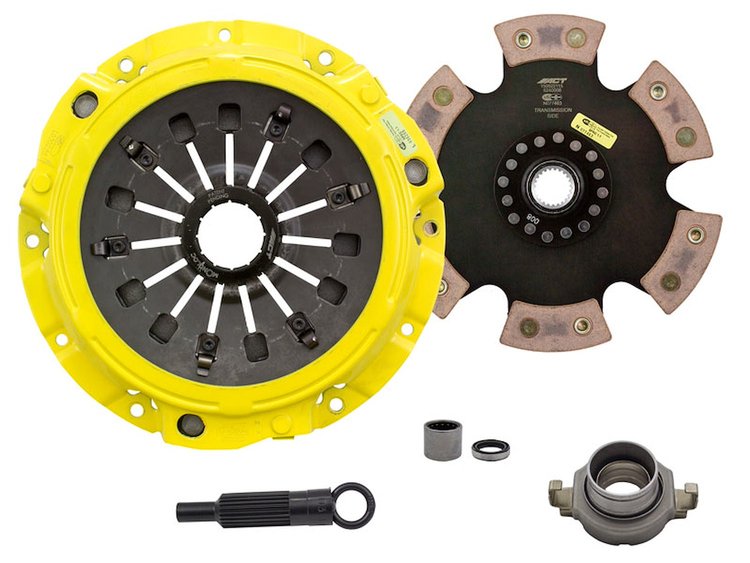

• Includes Clutch Alignment Tool (AT03), Clutch Pressure Plate (MZ028X), Clutch Release Bearing (RB600), Clutch Friction Disc (6240008), Clutch Pilot Bearing (PB1013)
• Moderate To Heavy Pedal Effort
• Aggressive Engagement
• Increased Gear Rattle
• Confidence During Hard Shifts; Moderate Friction Life
• Extended by ACT's Exclusive Diaphragm Design
• Dramatic Improvement In Release Mechanism Life
• Rigid Design May Increase Spline Wear; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
• Major Improvement In Release Mechanism; Recommended For Race Use Only; 100% Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Includes ACT's Patented Monoloc
• Weight: 15.7 lbs.
• Torque Capacity: 575 ft.-lbs.
• Torque Capacity Over OE: 103%
• Pilot Bushing: Yes
• Pressure Plate Type: Xtreme
• Release Bearing: Yes
• Clutch Disc Diameter: 9.4 in.
• Clutch Disc Diameter: 240 mm
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in.
• Alignment Tool Included: Yes
