Vehicle Info NeededADVANCE ADAPTERSPART NUMBER: 050-26-AX15

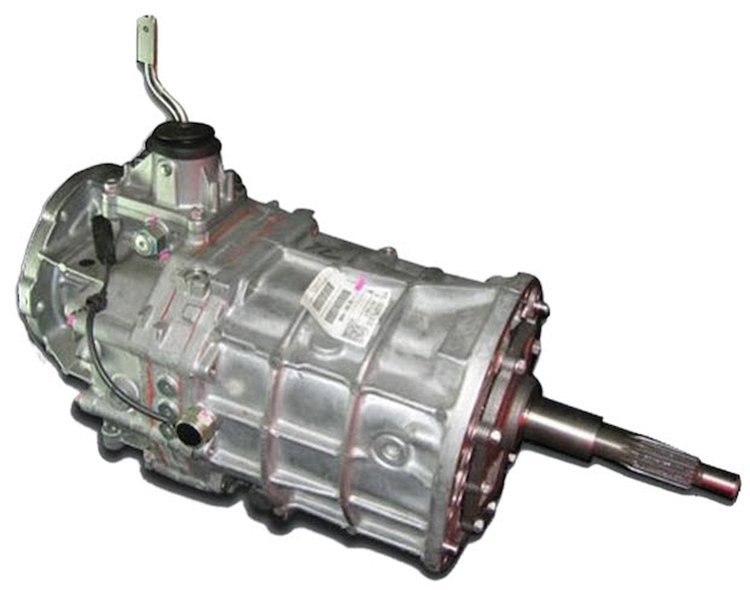

AX15 Five-Speed Manual Transmission for Jeep 4WD Applications
$2,13840$2376.00You Save$237.60
Truck Freight
Ships on 12/31/2026
Lowest Price GuaranteeAX15
Manual Transmission1.125 in. 10-Spline Input Aluminum Case Sold Individually
The transmission sets both the torque multiplication available at the wheels and the highway gearing the vehicle can live with. A correctly configured unit, with the input and output patterns matched to the engine and transfer case, is the backbone of a swap rather than an afterthought.
Advance Adapters 26-AX15 Installation Notes:
- 1.125 in. 10-Spline Input.
- Aluminum Case.
- Sold Individually.
Transmissions to Handle Torque & Horsepower
If you want a high-quality transmission at a great price, Advance Adapters Manual Transmissions help support your outdoor lifestyle. Whether modifying your vehicle or replacing a worn-out part for improved performance, you can trust Advance Adapters.
Part TypeManual Transmission
Product LineAdvance Adapters Manual Transmissions
BrandADVANCE ADAPTERS
Package Height24.0
Package Width24.0
Package Length24.0
Weight110.0 PG
Part CategoryPerformance Parts
Fourth Gear Ratio1.00:1
Fifth Gear Ratio0.79:1
Yoke IncludedNo
Number Of Gears5
Reverse Gear Ratio4.76:1
Second Gear Ratio2.33:1
Input Shaft Tip Diameter.750 in.
Trans Year1988 to 1999
QuantitySold Individually
RemanufacturedNo
Shifter Style RequiredStock
First Gear Ratio3.83:1
Input Spline Quantity10
Trans ModelAisin Warner AX15
Input Shaft Diameter1.125 in.
Part FitmentSemi Universal
Shifter IncludedYes
Case MaterialAluminum
Output Shaft Spline Quantity23
Third Gear Ratio1.44:1
Bellhousing IncludedNo
Package Qty1
Package TypeEA
