Advance Adapters 50-7906 Features:

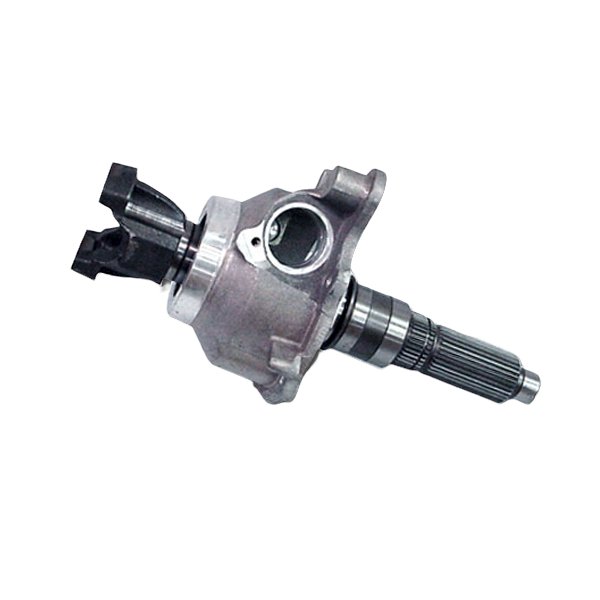

• The Jeep NP231 is one of the most commonly used transfer cases today. It is a chain-driven, planetary designed gear box with a low ratio of 2.72 to 1. For the average 4-wheeler, this is a good transfer case. One of the biggest faults of this transfer case is the overall length. At 20+ inches, this creates an extremely short rear driveshaft in the Jeep YJ & TJ Wranglers, which becomes even more crucial when the vehicle is lifted or a transmission swap is performed. In addition to a lift kit installation, larger tires are usually the next upgrade. Strength and driveline angle of the output shaft then becomes a concern. To make the NP231 better suited for these upgrades, we have designed our “Fixed Yoke” kit with the best features available. We manufacture a new one-piece tailhousing that will add 3-1/2” to 4” to your rear driveline length on a YJ, and up to 6” on a TJ. This will allow you to obtain a better driveshaft angle and eliminate driveline vibrations. We also manufacture a new 32 spline output shaft that is over 50% stronger than stock. This kit, along with a new 1310 series C.V. yoke, makes the NP231 a better transfer case for trail use. A full set of installation instructions is provided to assist in the installation of this kit.
• If you’re looking for a non C.V. yoke or a flanged yoke option, kit 50-7907 allows for these options. This kit can be ordered with a 1310 or 1350 non-C.V. yoke or a flange yoke can be added.
• We also offer new driveshafts from Tom Wood Custom driveshafts 50-7906TW4
• HARDWARE PACK FOR 50-7906 KIT / 50-7906P
• YOKE-32 SPLINE 1310 CV / 300475
• NP T/C T-HOUSING (CHEROKEE) / 51-7906
• SHAFT- OUTPUT NP231 w/ FIXED YOKE / 52-7905
• BEARING-207 SHORT SHAFT KIT / 716318
• SEAL-SYE TAILHOUSING / 716751
