Advance Adapters 712510 Features:

• This adapter plate assembly is used to adapt a GM Engine to the Jeep T-15 3 speed manual transmission. The adapter plate is 1.625 in.� in length and is manufactured from 356-T6 heat treated aluminum alloy. Included in the adapter plate kit you will receive an adapter plate, 4.686 in.� bearing retainer, pilot bushing, fastening hardware, and adapter instructions.
• Compatible Engines
• Chevy/GM Small Block V8
• Chevy/GM 4.3L V6
• Buick 225 & 231 V6
• Note: With our adapter plates, we utilize a new front bearing retainer to obtain proper bell housing alignment. Chevy adapter plates we use a small index of 4.686 in.�, if your bell housing utilizes the larger 5.125 index diameter you will also require PN716078.
• Transmission
• The T-15 is a 3 speed manual transmission and can be identified by a case length of 10.00 in.�. T15 or 1307 is normally cast on the side of the case. And 8 bolts hold the shift cover to the top of the case. This is probably one of the strongest of the 3 speeds transmission. The T-15 was only used behind V8 equipped CJ's and Jeep trucks.
• This kit is also used on Jeep T14 transmissions that were coupled to the straight 6 cylinder and had a 8.375 input stickout length. Note the T14 does have a smaller front bearing retainer index diameter than the T15, so you will also need our index ring P/N 716089 when using this kit on a T14 transmission.

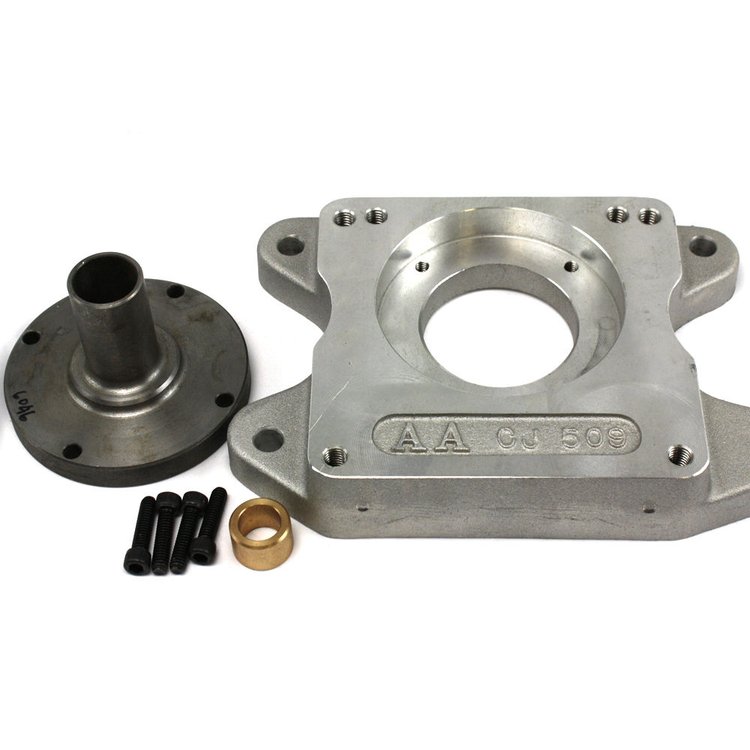

• S.H.C.S. 5/16 -18 X 1-1/4 black oxide / 723119
• BUSHING- PILOT.750 TIP GM CRANK / 716168
• ADAPTER- T15 TO GM BELL HOUSING / 711509
• RETAINER (AA-OD) / 716046
