Vehicle Info NeededAEM ELECTRONICSPART NUMBER: 017-30-2131-50

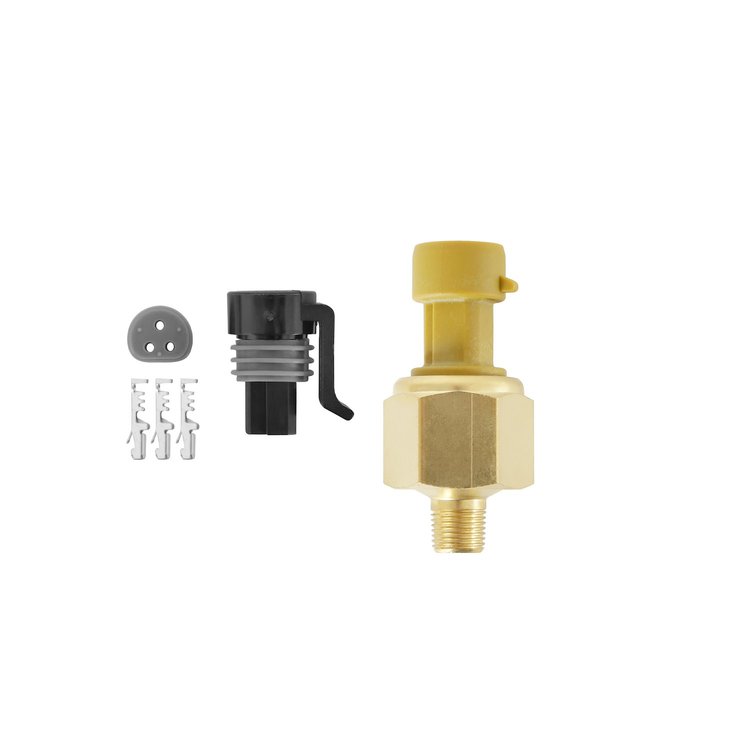

3.5 Bar/50 PSIa Map Sensor Kit 1/8" NPT Male Thread
$8366$92.95You Save$9.29
More than 10 available
Ships on Nov 02, 2026
Lowest Price GuaranteeMAP Sensor Kits
- 3.5 Bar/50 PSIa Map Sensor Kit
- 1/8" NPT Male Thread
- Brass Sensor Body
- Connector
- Pins
30-2131-30 Sensor Performance Specifications: - Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
- Operating Temperature: -20C to 105C / -4F to 221F
- Burst Pressure: 100PSI
- Response Time: < 1mS
- Wetted Materials: 304L and 316L Stainless Steel
- Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
- Weight: <85g
- Supply Current: <6mA at 5 Vdc
- Output: .5 to 4.5Vdc Linear
- Transfer Function: PSI = (12.5*(Voltage))-20.95
- Electrical Termination: Integral weatherproof connector, includes mating connector and pins (Supply Voltage 5Vdc +/- .5, Ground, Output)
Everything You Need To Complete Your Engine Management System
AEM Performance Electronics offers several sensors, plug and pin connector kits and accessories for vehicles that require additional outputs and/or upgraded hardware over existing equipment. Available sensors include boost/backpressure sensors, exhaust gas temperature (EGT) sensors, UEGO replacement sensors, inlet air temp sensors (IAT), K-Type sensors and more. All sensors come with a mating connector and pins for ease of installation.
Part TypeManifold Absolute Pressure (MAP) Sensor
Product LineAEM Sensors, Connectors And Accessories
BrandAEM ELECTRONICS
Package Height2.3
Package Width3.4
Package Length3.9
Weight0.2 PG
Part CategoryPerformance Parts
QuantitySold as a kit
Part FitmentSemi Universal
Vendor Part Number30-2131-50
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
