Vehicle Info NeededAEM ELECTRONICSPART NUMBER: 017-30-2131-75

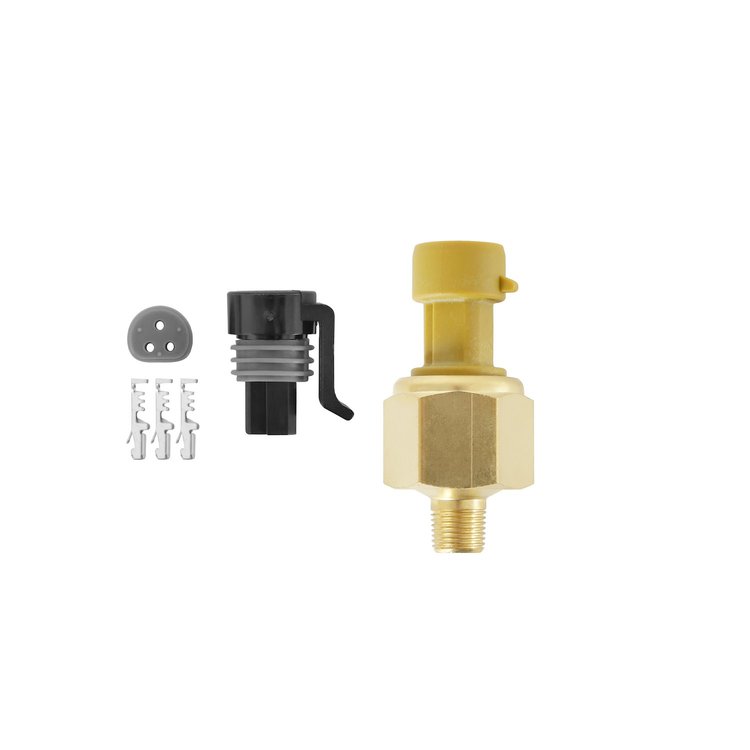

5 Bar/75 PSIa Map Sensor Kit 1/8" NPT Male Thread
$9295
Ships on Sep 02, 2026
Lowest Price GuaranteeMAP Sensor Kits
- 5 Bar/75 PSIa Map Sensor Kit
- 1/8" NPT Male Thread
- Brass Sensor Body
- Connector
- Pins
30-2131-75 Sensor Performance Specifications: - Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
- Operating Temp: -20C to 105C / -4F to 221F
- Burst Pressure: 150PSI
- Response Time: < 1mS
- Wetted Materials: 304L & 316L Stainless Steel
- Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
- Weight: <85g
- Supply Current: <6mA at 5 Vdc
- Output: .5 to 4.5Vdc Linear
- Transfer Function: PSI = (18.75*(Voltage))-24.075
- Elec. Termination: Integral weatherproof connector, includes mating connector & pins(Supply Voltage 5Vdc +/- .5, Ground, Output)
Part TypeMAP Sensor
BrandAEM ELECTRONICS
Package Height2.3
Package Width3.4
Package Length3.9
Weight0.2 PG
Part CategoryPerformance Parts
Wiring Harness IncludedYes
Map Sensor Range (Psi)58
Map Sensor Range (Bar)5 bar
QuantitySold individually
Part FitmentSemi Universal
Map Sensor StyleBosch
Vendor Part Number30-2131-75
Package Qty1
Package TypeEA
