Vehicle Info NeededAEM ELECTRONICSPART NUMBER: 017-30-2854

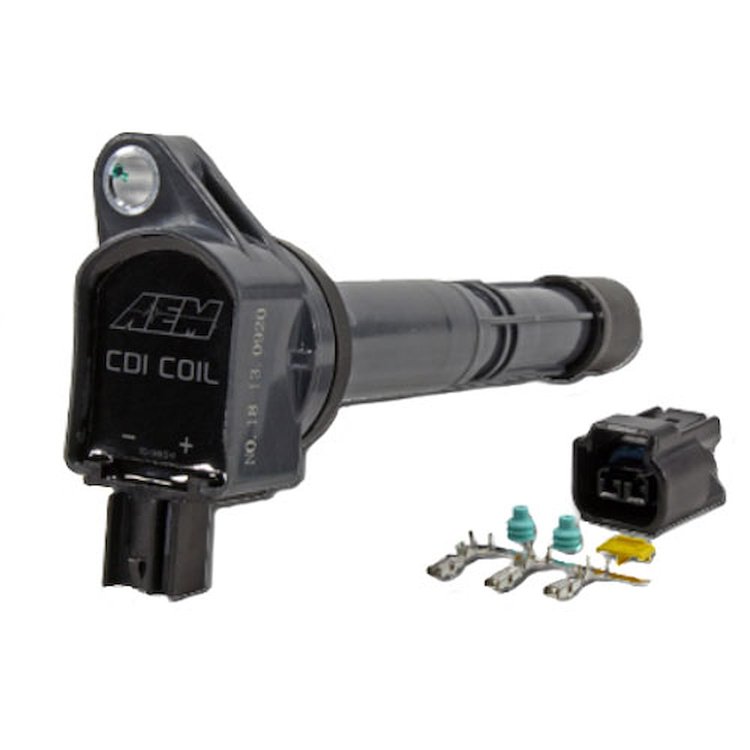

CDI Pencil Coil 6.8" Height
$7399
Ships on 11/11/2026
Lowest Price GuaranteeCDI Pencil Coils
- CDI Pencil Coil
- 6.8" Height
- AEM's CDI Pencil coils are designed for converting your distributed ignition system to a coil-on-plug system using either a CDI module or 4-Channel Coil Driver. Users can combine CDI Pencil Coils with a CDI module to replace their factory smart coils, or combine a CDI, AEM Engine Position Module and stand-alone programmable engine management system to convert from distributed ignition to coil-on-plug.Features:
- Convert from distributed ignition to Coil On Plug.
- Increases spark energy - ideal for high boost, high RPM and high compression engines.
- Must be used with CDI module or Four Channel Coil Driver (two-wire CDI/Igniter compatible coil).
- Compatible with all standard automotive spark plugs (including threaded tip style).
- CDI Pencil Coil Kits include pencil coil(s), connector pin(s), pin lock(s) and weather seals.
AEM's Ignition Coil Drivers are designed for driving high-power, dwell-controlled ignition coils that are commonly found on performance engines. These coil drivers can drive two wire "dumb" coils in coil-on-plug applications and also high performance distributed applications. The Three- and Four-Channel versions can be used as a replacement for a stock coil driver or when converting to coil-on-plug in engines that do not need the extra spark energy from a CDI, or do not have the mounting space for a CDI. Swapping to a coil on plug can eliminate dwell time issues that can be problematic in stock ignition systems, and AEM's Ignition Coil Drivers are the most affordable way to drive coils in a coil-on-plug set-up.
Show More
Features:
- Drive ignition coils on a coil-on-plug set-up without a CDI.
- Three- and Four-Channel Ignition Coil Drivers are ideal for ATV's, motorcycles, snowmobiles and racing vehicles with space limitations or those that do not require additional voltage generated by a CDI.
- One-Channel Ignition Driver is ideal for high performance distributed applications.
- The most affordable, reliable way to drive coils on a coil-on-plug set up.
- Simple installation with complete hardware included.
Part TypeIgnition Coil
Product LineAEM Ignition Coil Drivers
BrandAEM ELECTRONICS
Package Height3.3
Package Width4.4
Package Length7.8
Weight0.63 PG
Part CategoryPerformance Parts
Product TypeIgnition Coil
Vendor Part Number30-2854
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
